Traco Power recommends a PCB layout with a large copper area connected to the module's thermal pad to ensure good heat dissipation. A minimum of 1 oz copper thickness is recommended, and the copper area should be connected to a solid ground plane to reduce thermal resistance.
Yes, the TMH2412D is designed to withstand high-vibration environments. However, it's essential to ensure that the module is properly secured to the PCB and that the PCB is designed to withstand the vibration levels. Traco Power recommends following the IPC-9592 standard for vibration testing.
To ensure reliability in high-temperature environments, it's crucial to follow Traco Power's derating guidelines for temperature and output power. Additionally, ensure good airflow around the module, and consider using a heat sink or thermal interface material to reduce the thermal resistance.
Traco Power recommends using a low-ESR ceramic capacitor with a value of 10-22 μF, depending on the input voltage and output current requirements. The capacitor should be placed as close as possible to the module's input pins to minimize noise and ripple.
Yes, the TMH2412D can be used in a redundant or parallel configuration to achieve higher output power or redundancy. However, it's essential to follow Traco Power's guidelines for parallel operation and to ensure that the modules are properly synchronized and configured to avoid oscillations or instability.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TMH2412D Overview

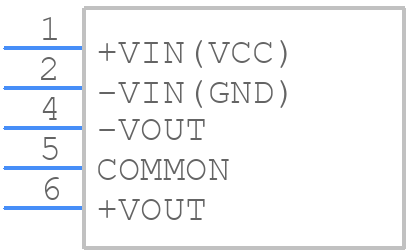

Use the download button to access the TMH2412D schematic symbol, PCB footprint, and 3D model.
