Part Image

TMJG16391A4NL - Taoglas

Description: RJ45 connector with integrated magnetics 1G Base-T Single Port Tab-U P with right angle THT mount and LEDs

Download TMJG16391A4NL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

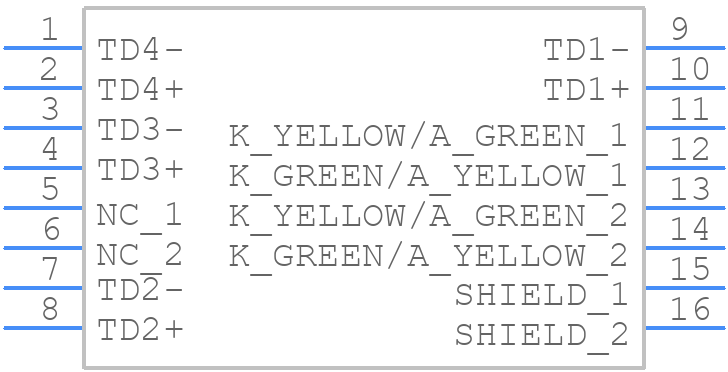

Symbol
TMJG16391A4NL - Taoglas - PCB symbol
click to zoom

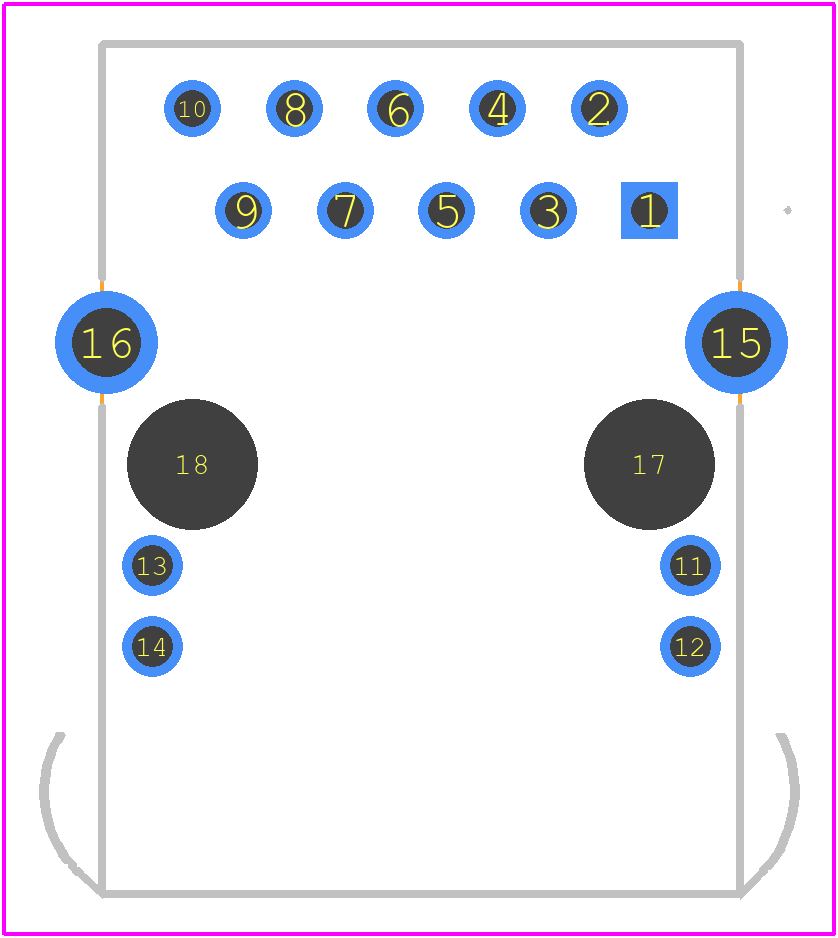

PCB Footprints
TMJG16391A4NL - Taoglas PCB footprint - Other - Other - TMJG16391A4NL-3
click to zoom

TMJG16391A4NL Details

  • Manufacturer Part Number:

    TMJG16391A4NL

  • Manufacturer:

    Taoglas Antenna Solutions

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TMJG16391A4NL Overview

Use the download button to access the TMJG16391A4NL schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like TMJG1, or try a keyword search, such as Telecom and Datacom Connectors
