TML-130-01-S-D-RA - SAMTEC

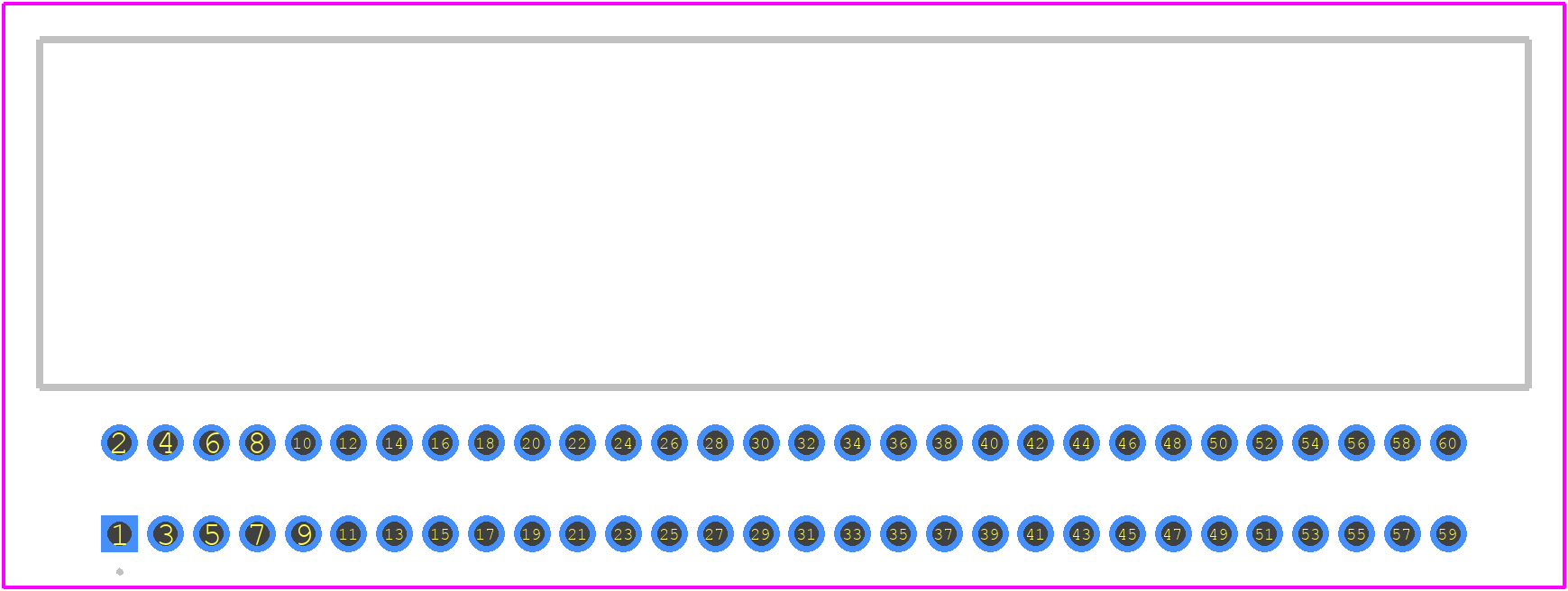

TML-130-01-S-D-RA Details

• Manufacturer Part Number:

  TML-130-01-S-D-RA

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  ROHS COMPLIANT

• Manufacturer:

  Samtec Inc

• Additional Feature:

  NONE

• Board Mounting Option:

  SPLIT BOARD LOCK

• Body Breadth:

  0.37 inch

• Body Depth:

  0.535 inch

• Body Length:

  1.625 inch

• Body/Shell Style:

  RECEPTACLE

• Connector Type:

  BOARD CONNECTOR

• Contact Finish Mating:

  GOLD (30) OVER NICKEL

• Contact Finish Termination:

  MATTE TIN OVER NICKEL

• Contact Gender:

  MALE

• Contact Material:

  PHOSPHOR BRONZE

• Contact Pattern:

  RECTANGULAR

• Contact Style:

  SQ PIN-SKT

• DIN Conformance:

  NO

• Dielectric Withstanding Voltage:

  600VAC V

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insulation Resistance:

  5000000000 Ω

• Insulator Color:

  BLACK

• Insulator Material:

  LIQUID CRYSTAL POLYMER (LCP)

• JESD-609 Code:

  e3

• MIL Conformance:

  NO

• Manufacturer Series:

  TML

• Mating Contact Pitch:

  0.05 inch

• Mating Contact Row Spacing:

  0.1 inch

• Mating Information:

  MULTIPLE MATING PARTS AVAILABLE

• Mixed Contacts:

  NO

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -65 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  RECTANGULAR

• PCB Contact Row Spacing:

  2.54 mm

• Plating Thickness:

  30u inch

• Polarization Key:

  CENTER

• Rated Current (Signal):

  1 A

• Reliability:

  COMMERCIAL

• Subcategory:

  Headers and Edge Type Connectors

• Terminal Length:

  0.12 inch

• Terminal Pitch:

  1.27 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  60
