TMOV34S391MP - LITTELFUSE

Description: 620 V 40 kA Varistor 1 Circuit Through Hole Square 34mm, Formed Tabs, 3-Lead

Download TMOV34S391MP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
TMOV34S391MP - LITTELFUSE - PCB symbol
click to zoom
PCB Footprints

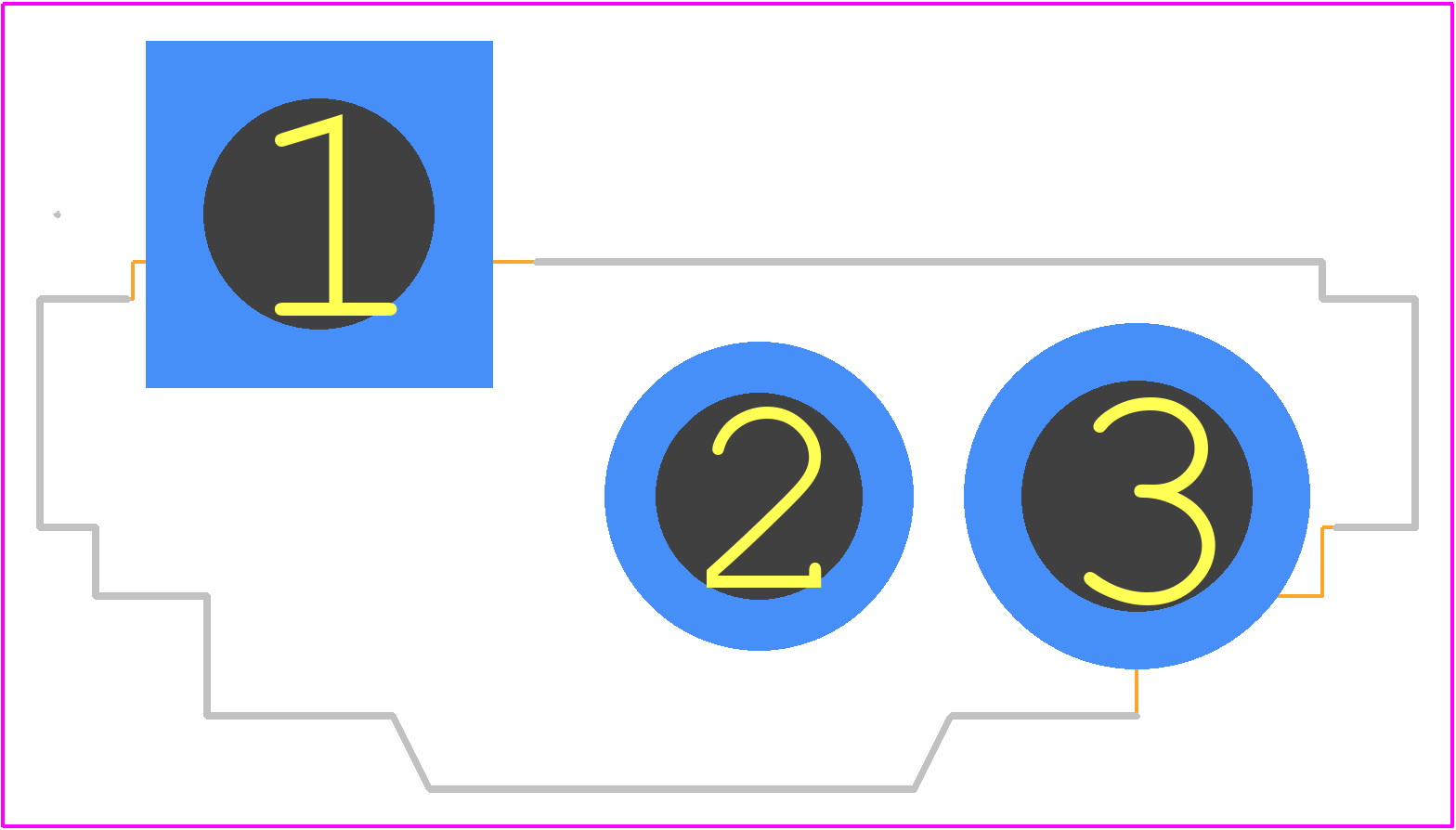

TMOV34S391MP - LITTELFUSE PCB footprint - Other - Other - TMOV34S391MP-6
click to zoom
3D Models
TMOV34S391MP - LITTELFUSE - 3D model - Other - TMOV34S391MP-6
click to zoom

TMOV34S391MP Details

  • Manufacturer Part Number:

    TMOV34S391MP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.40.40.00

  • Manufacturer:

    Littelfuse Inc

  • YTEOL:

    7.5

  • Circuit RMS Voltage-Max:

    385 V

  • Energy Absorbing Capacity-Max:

    800 J

  • JESD-609 Code:

    e3

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Terminals:

    3

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Height:

    42.5 mm

  • Package Length:

    37 mm

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    Radial

  • Package Width:

    14.2 mm

  • Packing Method:

    BULK

  • Rated Temperature:

    85 °C

  • Reference Standard:

    CUL; IECQ; UL; VDE;

  • Resistor Type:

    VARISTOR

  • Surface Mount:

    NO

  • Technology:

    METAL OXIDE

  • Terminal Finish:

    TIN

  • Terminal Placement:

    RADIAL

  • Terminal Shape:

    FLAT

  • Working Voltage:

    506 V

TMOV34S391MP Frequently Asked Questions (FAQs)

  • The recommended mounting method is to use a thermally conductive adhesive or thermal tape to attach the device to a heat sink or metal plate. This ensures good thermal conductivity and helps to dissipate heat efficiently.
  • Yes, TMOV34S391MP is designed to withstand high-vibration environments. However, it's recommended to follow proper mounting and installation procedures to ensure the device remains securely attached to the heat sink or metal plate.
  • The correct lead length and orientation depend on the specific application and PCB design. It's recommended to consult with a qualified engineer or refer to the manufacturer's application notes for guidance on lead length and orientation.
  • Yes, TMOV34S391MP is compatible with lead-free soldering processes. However, it's recommended to follow the manufacturer's recommended soldering profile and temperature guidelines to ensure reliable assembly.
  • The typical response time of TMOV34S391MP to overvoltage events is in the range of 1-10 microseconds. However, this can vary depending on the specific application and circuit design.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TMOV34S391MP Overview

Use the download button to access the TMOV34S391MP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TMOV3, or try a keyword search, such as Non-linear Resistors
