TMP01ESZ-REEL - Analog Devices

Description: Board Mount Temperature Sensors Lo Pwr Prog Cntlr SGL Supply 4.5-13.2V

Download TMP01ESZ-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

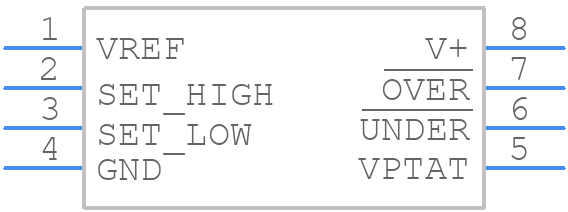

TMP01ESZ-REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
TMP01ESZ-REEL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R-8 (SOIC)
click to zoom
3D Models
TMP01ESZ-REEL - Analog Devices - 3D model - Small Outline Packages - R-8 (SOIC)
click to zoom

TMP01ESZ-REEL Details

  • Manufacturer Part Number:

    TMP01ESZ-REEL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    R-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Accuracy-Max (Cel):

    3 Cel

  • Additional Feature:

    TTL COMPATIBLE, CMOS COMPATIBLE

  • Body Breadth:

    3.9 mm

  • Body Height:

    1.55 mm

  • Body Length or Diameter:

    4.9 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Current-Max:

    0.8 mA

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Interface Type:

    0.5

  • Output Voltage-Max:

    2.51 V

  • Output Voltage-Min:

    2.49 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,ANALOG,VOLTAGE OUTPUT

  • Supply Voltage-Max:

    13.2 V

  • Supply Voltage-Min:

    4.5 V

  • Surface Mount:

    YES

  • Technology:

    HYBRID

  • Terminal Finish:

    Matte Tin (Sn)

  • Termination Type:

    SOLDER

TMP01ESZ-REEL Frequently Asked Questions (FAQs)

  • A good PCB layout for the TMP01ESZ-REEL involves placing the device near the thermal source, using a solid copper plane for heat spreading, and minimizing thermal barriers such as vias and solder resist.
  • Calibration involves applying a known temperature to the device and measuring the output voltage. The device can be calibrated using a two-point calibration method, where the output voltage is measured at two known temperatures (e.g., 0°C and 100°C).
  • The recommended power-up sequence is to apply VCC first, followed by a delay of at least 10 ms, and then apply the input voltage to the VIN pin. This ensures proper device initialization and prevents latch-up.
  • To minimize EMI, use a shielded cable for the output signal, keep the device away from high-frequency sources, and use a low-pass filter to attenuate high-frequency noise.
  • The maximum cable length depends on the output signal frequency and the noise environment. As a general guideline, keep the cable length below 10 meters to minimize signal degradation and noise pickup.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TMP01ESZ-REEL Overview

Use the download button to access the TMP01ESZ-REEL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TMP01, or try a keyword search, such as Temperature Sensors

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
