Part Image

TMP01ESZ - Analog Devices

Description: TMP01ESZ, Temperature Sensor ±0.5°C 4.5 → 13.2 V 8-Pin SOIC

Download TMP01ESZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

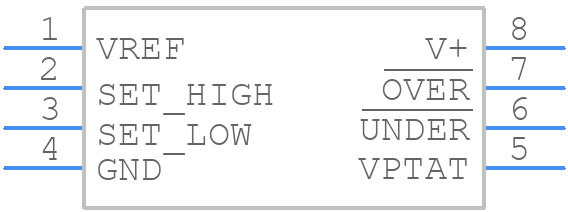

TMP01ESZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
TMP01ESZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R-8 (SOIC)
click to zoom
3D Models
TMP01ESZ - Analog Devices - 3D model - Small Outline Packages - R-8 (SOIC)
click to zoom

TMP01ESZ Details

  • Manufacturer Part Number:

    TMP01ESZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    R-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Accuracy-Max (Cel):

    3 Cel

  • Additional Feature:

    TTL COMPATIBLE, CMOS COMPATIBLE

  • Body Breadth:

    3.9 mm

  • Body Height:

    1.55 mm

  • Body Length or Diameter:

    4.9 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Current-Max:

    0.8 mA

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Interface Type:

    0.5

  • Output Voltage-Max:

    2.51 V

  • Output Voltage-Min:

    2.49 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,ANALOG,VOLTAGE OUTPUT

  • Supply Voltage-Max:

    13.2 V

  • Supply Voltage-Min:

    4.5 V

  • Surface Mount:

    YES

  • Technology:

    HYBRID

  • Terminal Finish:

    Matte Tin (Sn)

  • Termination Type:

    SOLDER

TMP01ESZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the TMP01ESZ involves placing the device near the thermal source, using a solid copper pour on the PCB to dissipate heat, and minimizing thermal barriers such as vias and soldermask.
  • Calibration involves comparing the TMP01ESZ output to a known temperature reference, such as a thermocouple or RTD, and adjusting the offset and gain to achieve the desired accuracy.
  • The maximum cable length for the TMP01ESZ analog output depends on the specific application, but a general rule of thumb is to keep the cable length under 10 feet (3 meters) to minimize signal degradation and noise pickup.
  • Yes, the TMP01ESZ is designed to withstand moderate vibration, but it's essential to ensure the device is properly mounted and secured to the PCB to prevent mechanical stress and damage.
  • To protect the TMP01ESZ from EMI, use a shielded cable, keep the device away from high-frequency sources, and consider adding EMI filters or shielding to the PCB design.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TMP01ESZ Overview

Use the download button to access the TMP01ESZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TMP01, or try a keyword search, such as Temperature Sensors

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
