TMP01FPZ - Analog Devices

Description: TMP01FPZ, Temperature Sensor ±1°C 4.5 → 13.2 V 8-Pin PDIP

Download TMP01FPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

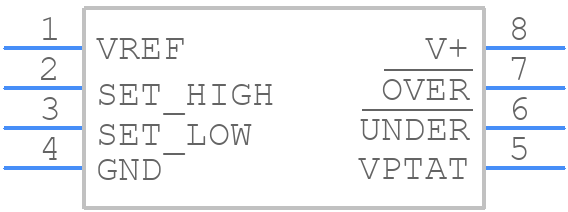

Symbol
TMP01FPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
TMP01FPZ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N-8
click to zoom
3D Models
TMP01FPZ - Analog Devices - 3D model - Dual-In-Line Packages - N-8
click to zoom

TMP01FPZ Details

  • Manufacturer Part Number:

    TMP01FPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    N-8

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Accuracy-Max (Cel):

    5 Cel

  • Additional Feature:

    TTL COMPATIBLE, CMOS COMPATIBLE

  • Body Breadth:

    7.87 mm

  • Body Height:

    5.33 mm

  • Body Length or Diameter:

    9.27 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e3

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Terminals:

    8

  • Operating Current-Max:

    0.8 mA

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Interface Type:

    0.5

  • Output Voltage-Max:

    2.51 V

  • Output Voltage-Min:

    2.48 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,ANALOG,VOLTAGE OUTPUT

  • Supply Voltage-Max:

    13.2 V

  • Supply Voltage-Min:

    4.5 V

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Termination Type:

    SOLDER

TMP01FPZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the TMP01FPZ involves placing the device near the thermal source, using a solid copper pour on the PCB to dissipate heat, and minimizing thermal barriers such as vias and soldermask.
  • The TMP01FPZ does not require calibration, as it is a calibrated device. However, for high-accuracy measurements, it is recommended to perform a system-level calibration using a precision temperature reference.
  • The maximum cable length for the TMP01FPZ's analog output signal depends on the specific application and noise environment. As a general guideline, keep the cable length as short as possible (less than 10 inches) to minimize noise and signal degradation.
  • Yes, the TMP01FPZ is designed to withstand moderate levels of vibration and shock. However, it is recommended to follow proper mounting and packaging guidelines to ensure the device's reliability in harsh environments.
  • To minimize EMI, use proper shielding, grounding, and filtering techniques when designing the PCB and connecting cables. Additionally, consider using a low-pass filter or a ferrite bead to reduce high-frequency noise.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TMP01FPZ Overview

Use the download button to access the TMP01FPZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TMP01, or try a keyword search, such as Temperature Sensors

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
