TMP01FSZ-REEL7 - Analog Devices

Description: Board Mount Temperature Sensors TEMP SENSOR/CONTROLLER

Download TMP01FSZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

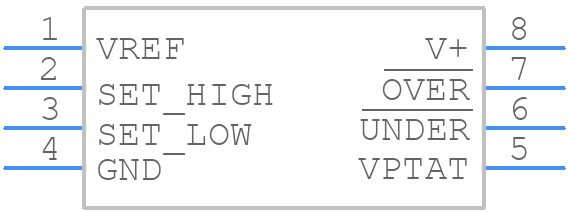

TMP01FSZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
TMP01FSZ-REEL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R8
click to zoom
3D Models
TMP01FSZ-REEL7 - Analog Devices - 3D model - Small Outline Packages - R8
click to zoom

TMP01FSZ-REEL7 Details

  • Manufacturer Part Number:

    TMP01FSZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    R-8

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Accuracy-Max (Cel):

    5 Cel

  • Additional Feature:

    TTL COMPATIBLE, CMOS COMPATIBLE

  • Body Breadth:

    3.9 mm

  • Body Height:

    1.55 mm

  • Body Length or Diameter:

    4.9 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Current-Max:

    0.8 mA

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Interface Type:

    0.5

  • Output Voltage-Max:

    2.51 V

  • Output Voltage-Min:

    2.48 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,ANALOG,VOLTAGE OUTPUT

  • Supply Voltage-Max:

    13.2 V

  • Supply Voltage-Min:

    4.5 V

  • Surface Mount:

    YES

  • Technology:

    HYBRID

  • Terminal Finish:

    Matte Tin (Sn)

  • Termination Type:

    SOLDER

TMP01FSZ-REEL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the TMP01FSZ-REEL7 should have a solid ground plane, minimal thermal resistance, and a small thermal mass. A 4-layer PCB with a dedicated thermal plane is recommended. The device should be placed near a thermal pad or a heat sink to improve heat dissipation.
  • The TMP01FSZ-REEL7 has an internal calibration, but for high-accuracy applications, external calibration may be necessary. This can be done by comparing the device's output to a calibrated temperature source, such as a thermocouple or a platinum RTD, and adjusting the output accordingly.
  • The maximum allowable power dissipation for the TMP01FSZ-REEL7 is 20mW. Exceeding this limit can cause the device to overheat, leading to reduced accuracy and reliability.
  • Yes, the TMP01FSZ-REEL7 is designed to withstand high-vibration environments. However, it's essential to ensure that the device is properly mounted and secured to prevent mechanical stress, which can affect its performance and accuracy.
  • To minimize EMI effects, use a shielded cable, keep the device away from high-frequency sources, and use a low-pass filter or a ferrite bead to filter out high-frequency noise. Additionally, ensure that the device is properly grounded and decoupled.
