TMP17FSZ Details
-
Manufacturer Part Number:
TMP17FSZ
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
MS-012AA, SOIC-8
-
Pin Count:
8
-
Manufacturer Package Code:
R-8
-
Country Of Origin:
Taiwan
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
-
Manufacturer:
Analog Devices Inc
TMP17FSZ Frequently Asked Questions (FAQs)
-
A good PCB layout for the TMP17FSZ involves placing the device near the thermal source, using a solid copper pour on the PCB to dissipate heat, and minimizing thermal barriers such as vias and soldermask.
-
Calibration involves comparing the TMP17FSZ output to a known temperature reference, such as a thermocouple or RTD, and adjusting the offset and gain to achieve the desired accuracy.
-
The maximum cable length for the TMP17FSZ's digital output depends on the specific application and noise environment, but a general guideline is to keep the cable length under 10 meters to minimize signal degradation.
-
To minimize EMI, use a shielded cable, keep the TMP17FSZ away from high-frequency sources, and use a low-pass filter or ferrite bead on the digital output lines.
-
The POR timing for the TMP17FSZ is typically around 10 ms, during which the device resets and initializes its internal registers.
Trust Checks
Community Provided
System Verified
Community Approved
TMP17FSZ Overview

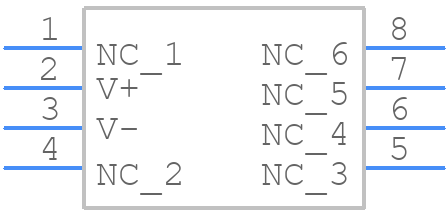

Use the download button to access the TMP17FSZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TMP17,
or try a keyword search, such as Temperature Sensors
