TMP36GS-REEL7 - Analog Devices

Description: Low Voltage Temperature Sensors

Download TMP36GS-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

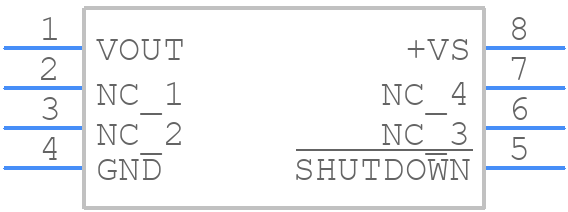

TMP36GS-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
TMP36GS-REEL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - - [SOIC_N]-
click to zoom
3D Models
TMP36GS-REEL7 - Analog Devices - 3D model - Small Outline Packages - - [SOIC_N]-
click to zoom

TMP36GS-REEL7 Details

  • Manufacturer Part Number:

    TMP36GS-REEL7

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    MS-012AA, SOIC-8

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Accuracy-Max (Cel):

    4 Cel

  • Body Breadth:

    3.9 mm

  • Body Height:

    1.55 mm

  • Body Length or Diameter:

    4.9 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e0

  • Linearity (Cel):

    0.5 Cel

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Current-Max:

    0.05 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Voltage-Max:

    2 V

  • Output Voltage-Min:

    0.1 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,ANALOG,VOLTAGE OUTPUT

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Coefficient:

    POSITIVE ppm/°C

  • Terminal Finish:

    Tin/Lead (Sn85Pb15)

  • Termination Type:

    SOLDER

TMP36GS-REEL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the TMP36GS-REEL7 involves placing the sensor near the thermal source, using a solid copper pour on the PCB to dissipate heat, and minimizing the number of thermal vias under the sensor. Additionally, keeping the sensor away from high-current traces and heat-generating components can help improve accuracy.
  • The TMP36GS-REEL7 does not require calibration, as it is a calibrated device with an accuracy of ±1°C at 25°C. However, if high-accuracy applications require further calibration, it can be done by measuring the output voltage at multiple temperatures and creating a lookup table or polynomial equation to correct for any deviations.
  • The maximum cable length for the TMP36GS-REEL7 depends on the specific application and the desired level of accuracy. In general, shorter cable lengths are recommended to minimize noise and voltage drops. A maximum cable length of 10 feet (3 meters) is recommended, but longer lengths may be possible with proper shielding and signal conditioning.
  • The TMP36GS-REEL7 is a robust device that can withstand moderate levels of vibration and shock. However, it is not designed for extreme environments. If the application involves high vibration or shock, additional mechanical protection, such as potting or conformal coating, may be necessary to ensure the device's reliability.
  • To minimize EMI with the TMP36GS-REEL7, use proper PCB layout techniques, such as separating analog and digital traces, using ground planes, and adding EMI filters or shielding to the device. Additionally, consider using a low-pass filter or a ferrite bead to filter out high-frequency noise.
