- Part Number TMP37FS
- Manufacturer Analog Devices
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - R-8 (SOIC)--
- Released Date May 15, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
TMP37FS Details
-
Manufacturer Part Number:
TMP37FS
-
Part Life Cycle Code:
Obsolete
-
Package Description:
MS-012-AA, SOIC-8
-
Manufacturer:
Analog Devices Inc
-
YTEOL:
0
-
Accuracy-Max (Cel):
4 Cel
-
Body Breadth:
3.9 mm
-
Body Height:
1.55 mm
-
Body Length or Diameter:
4.9 mm
-
Housing:
PLASTIC
-
JESD-609 Code:
e0
TMP37FS Frequently Asked Questions (FAQs)
-
The TMP37FS should be placed as close as possible to the thermal source being measured, and away from any heat sources or noise-generating components. A ground plane underneath the device can help to reduce noise and improve accuracy. Additionally, the device should be oriented to minimize thermal gradients and air currents.
-
The TMP37FS does not require calibration, as it is a calibrated device with an accuracy of ±1°C over the operating temperature range. However, if high-accuracy measurements are required, the device can be calibrated using a precision temperature reference and a calibration routine specific to the application.
-
The maximum cable length for the TMP37FS is not specified in the datasheet, but it is generally recommended to keep the cable length as short as possible to minimize noise and signal degradation. A longer cable length can introduce errors due to signal attenuation, noise pickup, and thermal gradients, which can affect the accuracy of the temperature readings.
-
The TMP37FS is a surface-mount device and can be susceptible to vibration and shock. However, it is designed to meet the requirements of most industrial and commercial applications. If the device is to be used in high-vibration or high-shock environments, it is recommended to use a robust mounting method, such as a screw-down or adhesive mounting, and to ensure that the device is properly secured to the PCB or other mounting surface.
-
The TMP37FS is designed to be immune to electromagnetic interference (EMI) and radio-frequency interference (RFI) due to its differential output and internal filtering. However, it is still recommended to follow good PCB design practices, such as using a ground plane, shielding, and filtering, to minimize the effects of EMI and RFI on the device.
Trust Checks
Community Provided
System Verified
Community Approved
TMP37FS Overview

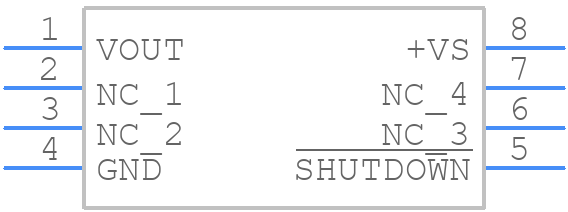

Use the download button to access the TMP37FS schematic symbol, PCB footprint, and 3D model.
