TMP88CP76F - Toshiba

TMP88CP76F Details

• Manufacturer Part Number:

  TMP88CP76F

• Part Life Cycle Code:

  Obsolete

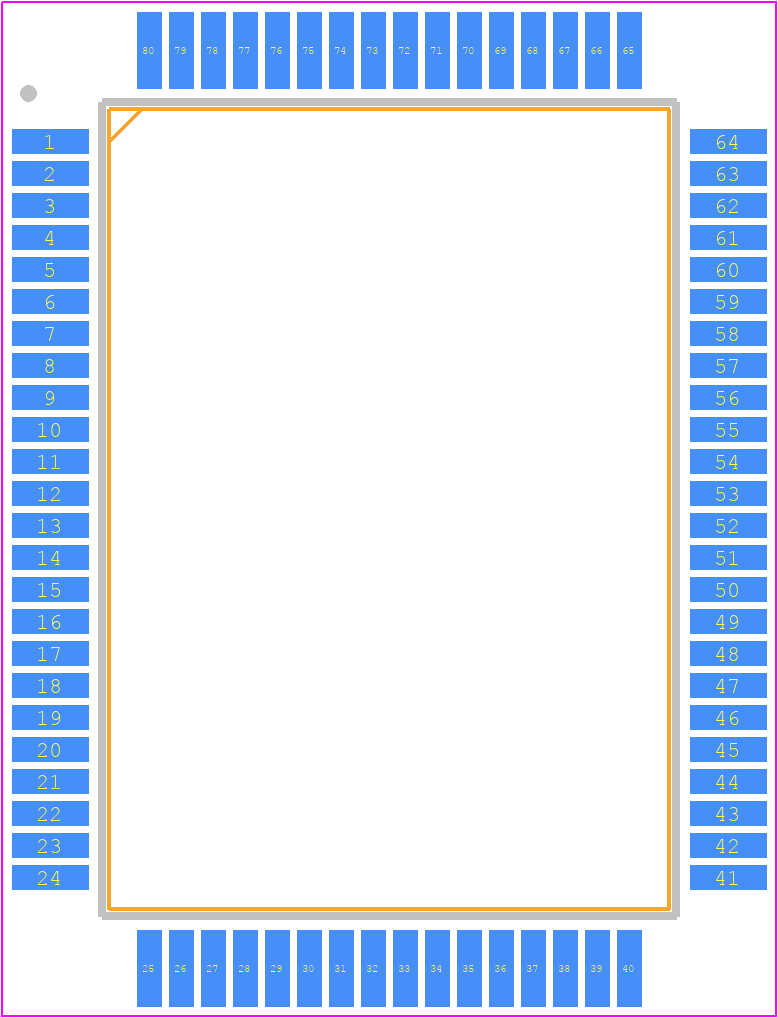

• Part Package Code:

  QFP

• Package Description:

  14 X 20 MM, 0.80 MM PITCH, PLASTIC, QFP-80

• Pin Count:

  80

• Manufacturer:

  Toshiba America Electronic Components

• YTEOL:

  0

• Has ADC:

  YES

• Additional Feature:

  OPERATES AT 2.7 V MINIMUM SUPPLY @ 32.768 KHZ

• Bit Size:

  8

• Clock Frequency-Max:

  12.5 MHz

• DAC Channels:

  NO

• DMA Channels:

  NO

• JESD-30 Code:

  R-PQFP-G80

• Length:

  20 mm

• Number of I/O Lines:

  68

• Number of Terminals:

  80

• Operating Temperature-Max:

  70 °C

• Operating Temperature-Min:

  -30 °C

• PWM Channels:

  YES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  QFP

• Package Shape:

  RECTANGULAR

• Package Style:

  FLATPACK

• Peak Reflow Temperature (Cel):

  NOT SPECIFIED

• Qualification Status:

  Not Qualified

• ROM Programmability:

  MROM

• Seated Height-Max:

  3.05 mm

• Speed:

  12.5 MHz

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  4.5 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  OTHER

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Width:

  14 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER
