TMP88FW45AFG - Toshiba

TMP88FW45AFG Details

• Manufacturer Part Number:

  TMP88FW45AFG

• Rohs Code:

  Yes

• Part Life Cycle Code:

  End Of Life

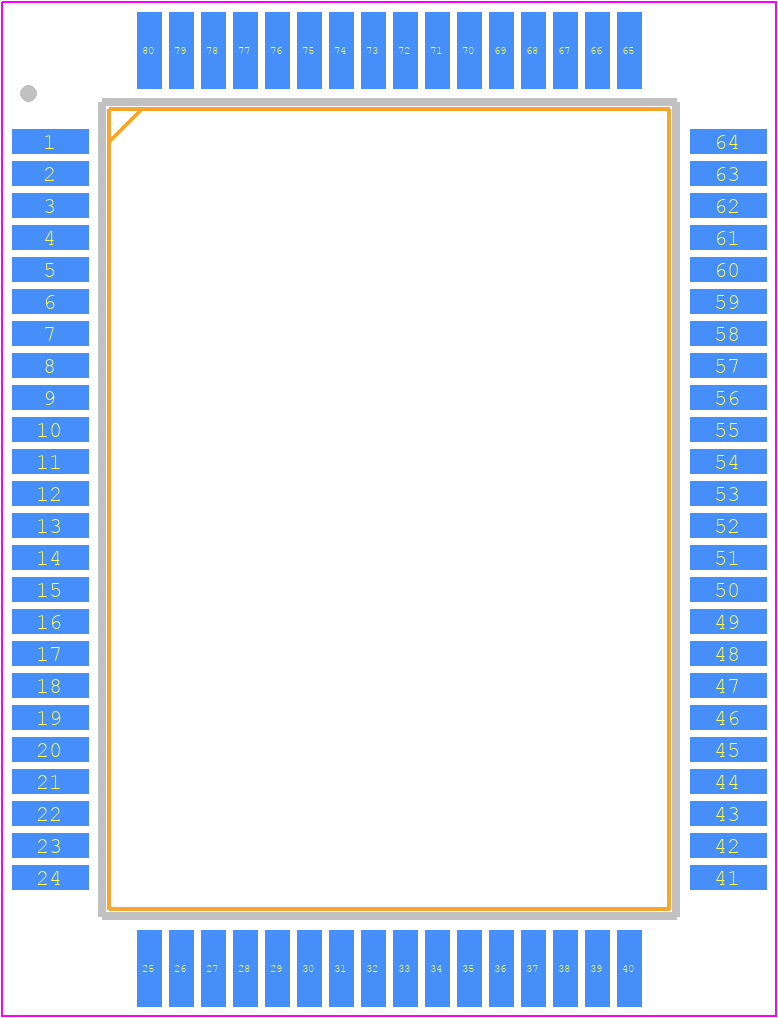

• Part Package Code:

  QFP

• Package Description:

  QFP-80

• Pin Count:

  80

• HTS Code:

  8542.31.00.15

• Manufacturer:

  Toshiba America Electronic Components

• YTEOL:

  0.4

• Has ADC:

  YES

• Bit Size:

  8

• Boundary Scan:

  NO

• Clock Frequency-Max:

  20 MHz

• DAC Channels:

  NO

• DMA Channels:

  NO

• JESD-30 Code:

  R-PQFP-G80

• Length:

  20 mm

• Number of I/O Lines:

  71

• Number of Terminals:

  80

• On Chip Program ROM Width:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  YES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  QFP

• Package Shape:

  RECTANGULAR

• Package Style:

  FLATPACK

• Qualification Status:

  Not Qualified

• RAM (bytes):

  4224

• ROM (words):

  122880

• ROM Programmability:

  FLASH

• Seated Height-Max:

  3.05 mm

• Speed:

  20 MHz

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  5 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  QUAD

• Width:

  14 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER
