TMP89FW24ADFG - Toshiba

TMP89FW24ADFG Details

• Manufacturer Part Number:

  TMP89FW24ADFG

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

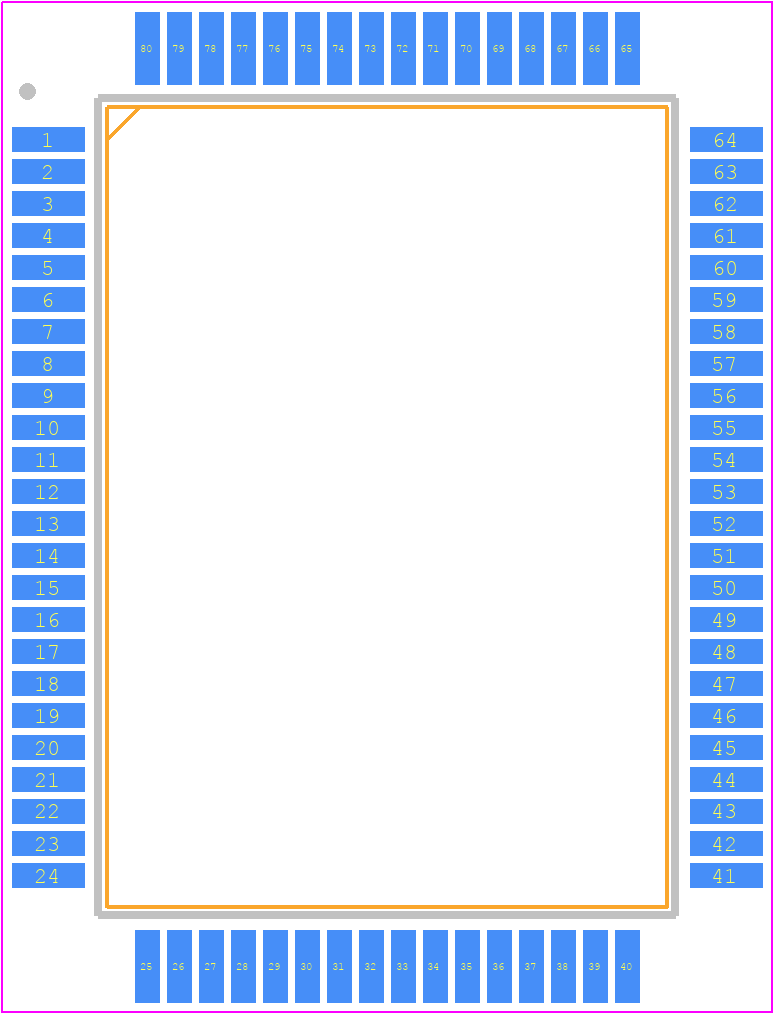

• Package Description:

  QFP-80

• HTS Code:

  8542.31.00.15

• Manufacturer:

  Toshiba America Electronic Components

• YTEOL:

  6

• Has ADC:

  YES

• Bit Size:

  8

• Boundary Scan:

  NO

• CPU Family:

  TLCS-870/C1

• Clock Frequency-Max:

  16 MHz

• DAC Channels:

  NO

• DMA Channels:

  NO

• Format:

  FIXED POINT

• Integrated Cache:

  NO

• JESD-30 Code:

  R-PQFP-G80

• Length:

  20 mm

• Low Power Mode:

  YES

• Number of External Interrupts:

  5

• Number of I/O Lines:

  68

• Number of Serial I/Os:

  3

• Number of Terminals:

  80

• Number of Timers:

  10

• On Chip Data RAM Width:

  8

• On Chip Program ROM Width:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  YES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  QFP

• Package Equivalence Code:

  QFP80,.55X.8,32

• Package Shape:

  RECTANGULAR

• Package Style:

  FLATPACK

• RAM (bytes):

  3072

• ROM (words):

  126976

• ROM Programmability:

  FLASH

• Seated Height-Max:

  3.05 mm

• Speed:

  16 MHz

• Supply Current-Max:

  7 mA

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  2.7 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  QUAD

• Width:

  14 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER
