TMPM37AFSQG - Toshiba

Description: ARM Microcontrollers - MCU MCU with Built-in Pre-driver for Motor Control

Download TMPM37AFSQG Model

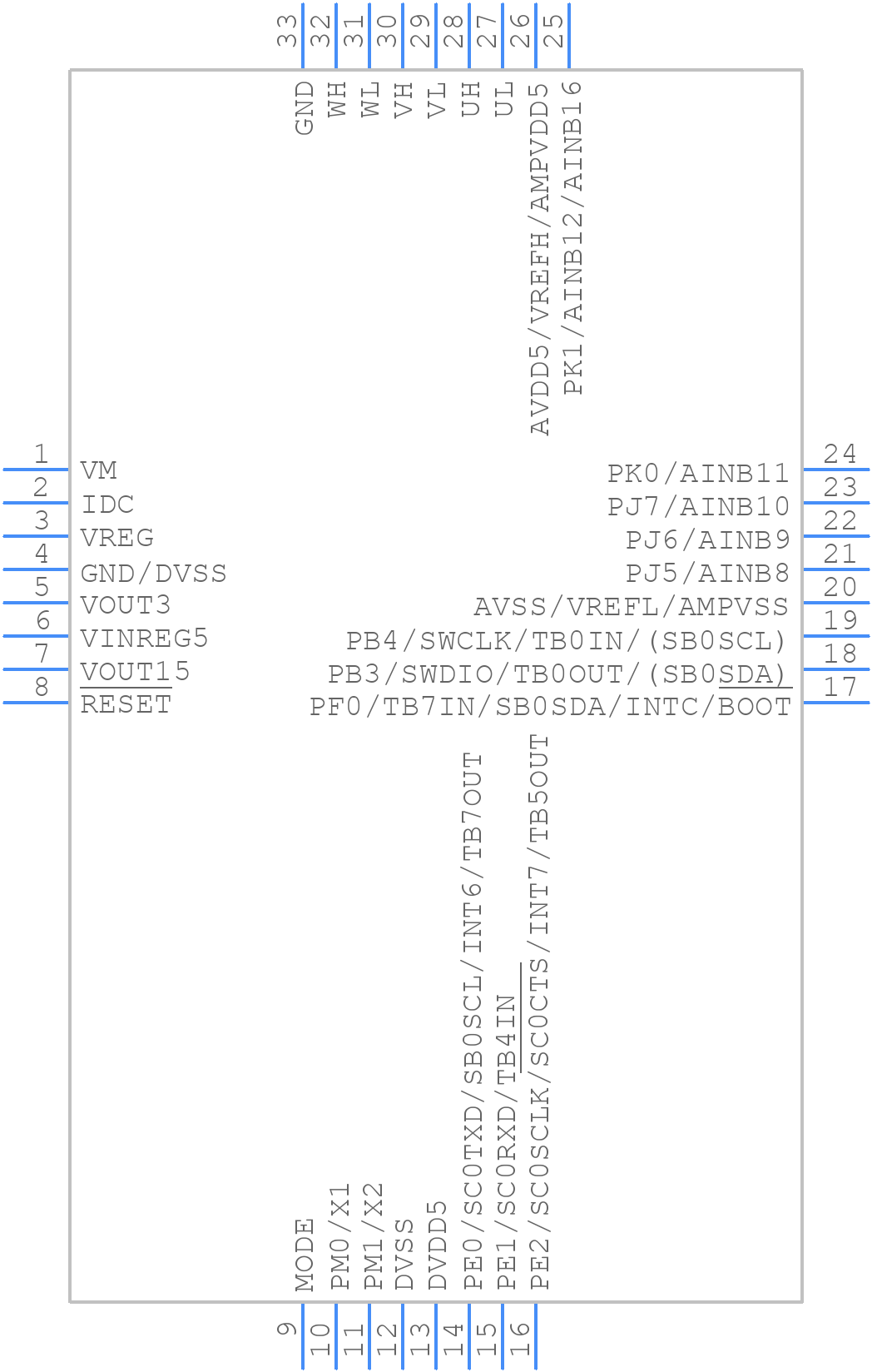

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TMPM37AFSQG - Toshiba PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - TMPM37AFSQG
click to zoom
3D Models
TMPM37AFSQG - Toshiba  - 3D model - Quad Flat No-Lead - TMPM37AFSQG
click to zoom

TMPM37AFSQG Details

  • Manufacturer Part Number:

    TMPM37AFSQG

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    VQFN-32

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    0

  • Has ADC:

    YES

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • CPU Family:

    CORTEX-M3

  • Clock Frequency-Max:

    10 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    NO

  • Format:

    FIXED POINT

  • Integrated Cache:

    NO

  • JESD-30 Code:

    S-PQCC-N32

  • Length:

    5 mm

  • Low Power Mode:

    YES

  • Number of External Interrupts:

    3

  • Number of I/O Lines:

    13

  • Number of Serial I/Os:

    1

  • Number of Terminals:

    32

  • Number of Timers:

    5

  • On Chip Data RAM Width:

    8

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • RAM (bytes):

    4096

  • ROM (words):

    65536

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    0.9 mm

  • Speed:

    40 MHz

  • Supply Current-Max:

    35 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC
