Description:(1) ARM Cortex-M3 microcontroller core
1) Improved code efficiency has been realized through the use of Thumb®-2 instruction
- New 16-bit Thumb® instructions for improved program flow
- New 32-bit Thumb instructions for improved performance
- Auto-switching between 32-bit instruction and 16-bit instruction is executed by compiler.
2) Both high performance and low power consumption have been achieved
High performance
- A 32-bit multiplication (32×32=32 bit) can be executed with one clock
- Division
The recommended operating temperature range for the TMPM380FYDFG is -40°C to 85°C, as specified in the datasheet. However, it's essential to note that the device can operate at temperatures beyond this range, but with reduced performance and reliability.
The clock settings for the TMPM380FYDFG can be configured using the Clock Control Register (CCR). The CCR allows you to select the clock source, divide the clock frequency, and enable or disable the clock. Refer to the datasheet and the Toshiba-provided documentation for detailed information on clock configuration.
The maximum current consumption of the TMPM380FYDFG varies depending on the operating mode and frequency. According to the datasheet, the maximum current consumption is approximately 350 mA at 200 MHz with all peripherals enabled. However, this value can be reduced by optimizing the power consumption through clock gating, peripheral disablement, and voltage scaling.
The TMPM380FYDFG has a built-in Secure Boot feature that ensures the authenticity and integrity of the firmware. To implement secure boot, you need to generate a secure boot key, create a secure boot header, and configure the Secure Boot Control Register (SBCR). Toshiba provides a Secure Boot Guide and a Secure Boot Tool to assist with the implementation process.
Toshiba provides a range of development tools and software for the TMPM380FYDFG, including the TMPM380FYDFG Evaluation Board, the Toshiba IAR Embedded Workbench, and the Toshiba eCube Development Environment. Additionally, third-party tools like Keil µVision and ARM Development Studio are also supported.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TMPM380FYDFG Overview

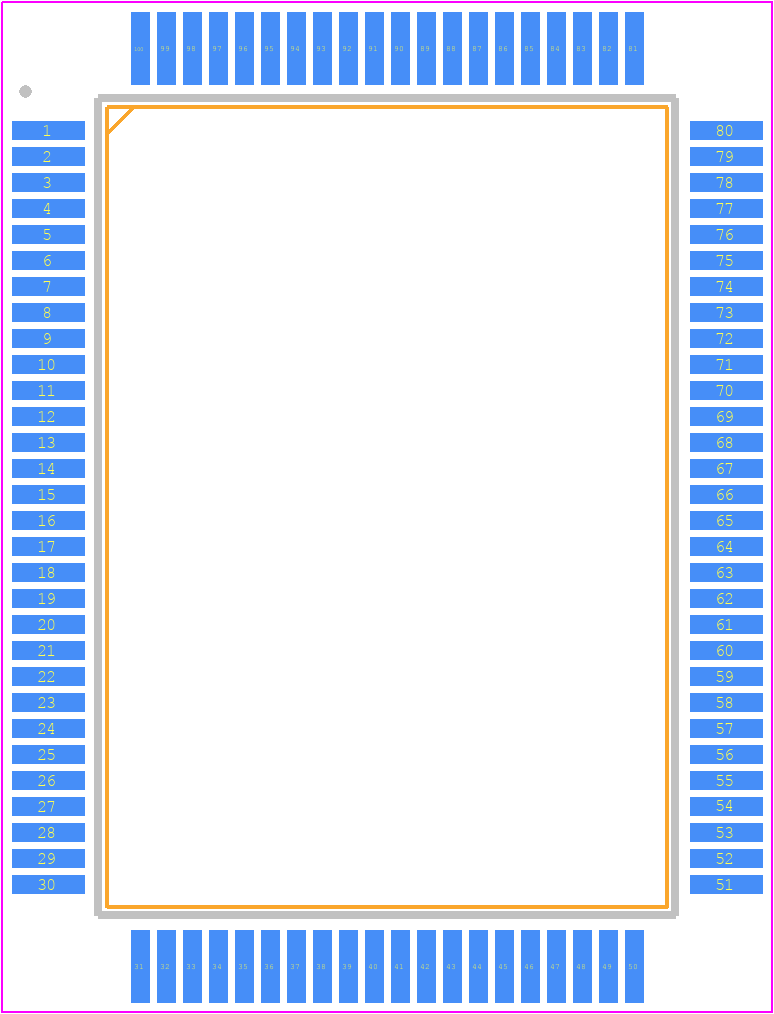

Use the download button to access the TMPM380FYDFG schematic symbol, PCB footprint, and 3D model.
