TMR2411 - Traco Power

Description: Isolated Module DC DC Converter 1 Output 5V 400mA 18V - 36V Input, –40° to +85°C

Download TMR2411 Model

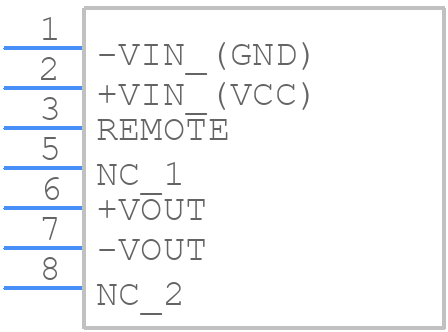

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TMR2411 - Traco Power PCB footprint - Other - Other - TMR2411-1
click to zoom

TMR2411 Details

  • Manufacturer Part Number:

    TMR2411

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MODULE

  • Pin Count:

    8/7

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • Manufacturer:

    Traco Power

  • YTEOL:

    6

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Efficiency (Main Output):

    81%

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    18 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-PSMA-T7

  • JESD-609 Code:

    e3

  • Length:

    21.8 mm

  • Load Regulation-Max:

    0.75%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    92 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.4 A

  • Output Voltage-Max:

    5.05 V

  • Output Voltage-Min:

    4.95 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    250

  • Seated Height-Max:

    11.6 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    10

  • Total Power Output-Max:

    2 W

  • Trim/Adjustable Output:

    NO

  • Width:

    9.2 mm

TMR2411 Frequently Asked Questions (FAQs)

  • The TMR2411 can drive a maximum capacitive load of 10uF. Exceeding this value may cause instability or oscillation.
  • Ensure good airflow around the device, avoid blocking the airflow vents, and consider using a heat sink if the device is expected to operate in high ambient temperatures or high power dissipation conditions.
  • A low-ESR ceramic capacitor with a value of 10uF to 22uF is recommended for the input capacitor. This helps to reduce input ripple and ensure stable operation.
  • Yes, the TMR2411 can be used in a redundant power supply configuration. However, ensure that the output voltage is synchronized and the devices are properly isolated to prevent back-feeding or damage.
  • Check the input voltage, output load, and ambient temperature. Ensure the device is properly cooled and the input capacitor is of the recommended type and value. Also, verify that the output voltage is within the specified range and the device is not operating in a fault condition.
