tmr3-2423 footprint, schematic symbol and 3D model by Traco Power

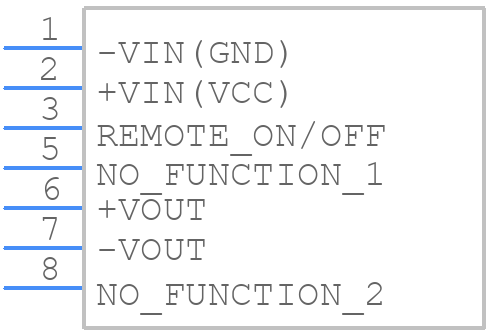

Symbol

click to zoom

PCB Footprints

tmr3-2423 - Traco Power PCB footprint - Other - Other - tmr3-2423

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for tmr3-2423
Part Number tmr3-2423
Manufacturer Traco Power
Pin Count 7
Part Category Undefined or Miscellaneous
Package Category Other
Footprint Name Other - tmr3-2423
Released Date Sep 4, 2015
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

tmr3-2423 Details

Manufacturer Part Number:
TMR3-2423
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Taiwan
ECCN Code:
EAR99
Manufacturer:
Traco Power
YTEOL:
6
Additional Feature:
-15 VOLT ADDITIONAL OUTPUT IS AVAILABLE
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
Efficiency (Main Output):
85%
Input Voltage-Max:
36 V
Input Voltage-Min:
18 V
Input Voltage-Nom:
24 V
JESD-609 Code:
e3
Length:
21.8 mm
Load Regulation-Max:
1%
Number of Functions:
1
Number of Outputs:
2
Number of Terminals:
7
Operating Temperature-Max:
70 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
0.1 A
Output Voltage-Max:
15.15 V
Output Voltage-Min:
14.85 V
Output Voltage-Nom:
15 V
Package Body Material:
PLASTIC/EPOXY
Package Equivalence Code:
SIP7/8,.23
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Qualification Status:
Not Qualified
Seated Height-Max:
11.1 mm
Surface Mount:
NO
Technology:
HYBRID
Temperature Grade:
OTHER
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
THROUGH-HOLE
Terminal Pitch:
2.54 mm
Terminal Position:
SINGLE
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Total Power Output-Max:
3 W
Trim/Adjustable Output:
NO
Width:
9.2 mm

tmr3-2423 Frequently Asked Questions (FAQs)

Traco Power recommends using a low-ESR ceramic capacitor or a film capacitor with a minimum capacitance of 10uF and a voltage rating of at least 1.5 times the input voltage.
The TMR 3-2423 is rated for operation up to 80°C, but derating is required above 60°C. Consult the datasheet for derating curves and ensure proper thermal management to prevent overheating.
The TMR 3-2423 meets various safety and regulatory standards, including UL60950-1, EN60950-1, and IEC60950-1. However, it's essential to review the datasheet and certification documents to ensure compliance with your specific requirements.
The maximum output capacitance is not explicitly stated in the datasheet, but as a general rule, it's recommended to keep the output capacitance below 47uF to prevent oscillation and ensure stability.
Yes, you can parallel multiple TMR 3-2423 modules to increase the output power, but ensure that each module has its own input filter and that the output voltages are matched. Consult Traco Power's application notes for more information on paralleling modules.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

tmr3-2423 Overview

Use the download button to access the tmr3-2423 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like tmr3-, or try a keyword search, such as Other Signal Circuits
