TMS-128-56-G-S footprint, schematic symbol and 3D model by SAMTEC

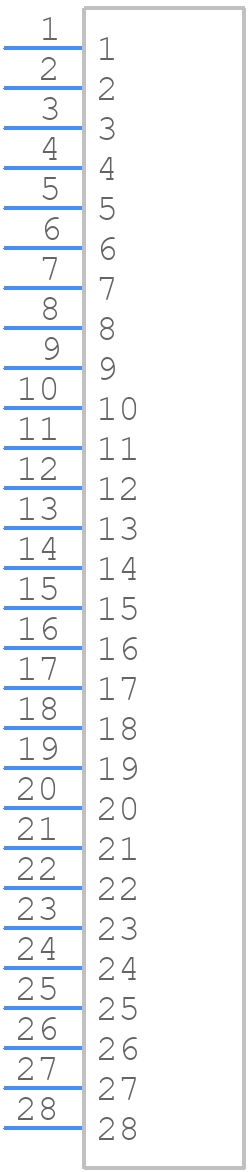

Symbol

click to zoom

PCB Footprints

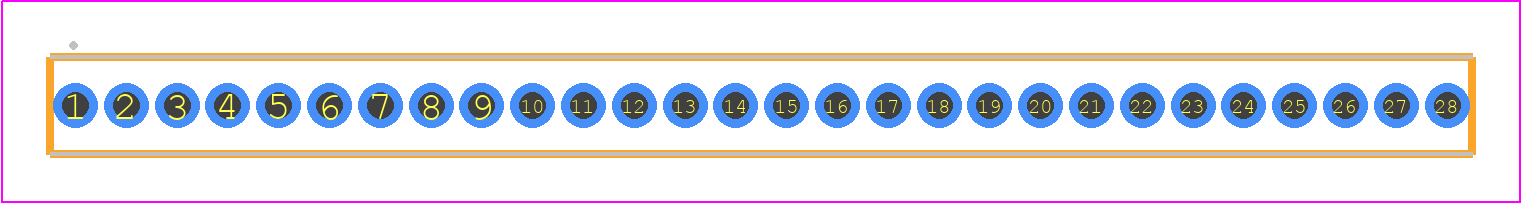

TMS-128-56-G-S - SAMTEC PCB footprint - Other - Other - TMS-128-YY-XX-S

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for TMS-128-56-G-S
Part Number TMS-128-56-G-S
Manufacturer SAMTEC
Pin Count 28
Part Category Connector
Package Category Other
Footprint Name Other - TMS-128-YY-XX-S
Released Date Jun 17, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

TMS-128-56-G-S Details

Manufacturer Part Number:
TMS-128-56-G-S
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT
Country Of Origin:
Malaysia, USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
Samtec Inc
YTEOL:
9.15
Body Breadth:
0.196 inch
Body/Shell Style:
RECEPTACLE
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
GOLD (10) OVER NICKEL
Contact Finish Termination:
Gold (Au) - with Nickel (Ni) barrier
Contact Gender:
MALE
Contact Material:
PHOSPHOR BRONZE
Contact Pattern:
RECTANGULAR
Contact Style:
SQ PIN-SKT
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulator Color:
BLACK
Insulator Material:
POLYAMIDE
JESD-609 Code:
e4
MIL Conformance:
NO
Mating Contact Pitch:
0.05 inch
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number Of PCB Rows:
1
Number of Rows Loaded:
1
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
PCB Contact Pattern:
RECTANGULAR
Plating Thickness:
10u inch
Rated Current (Signal):
5 A
Reference Standard:
UL
Terminal Length:
0.12 inch
Terminal Pitch:
1.27 mm
Termination Type:
SOLDER
Total Number of Contacts:
28

TMS-128-56-G-S Frequently Asked Questions (FAQs)

The recommended torque for the screws on the TMS-128-56-G-S connector is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
Yes, the TMS-128-56-G-S connector is designed to withstand high-vibration environments. Samtec recommends following their guidelines for vibration testing and ensuring proper screw torque to ensure reliable connections.
The maximum operating temperature for the TMS-128-56-G-S connector is 125°C (257°F) according to the datasheet. However, it's recommended to derate the connector's current-carrying capacity at higher temperatures.
The TMS-128-56-G-S connector has a moisture sensitivity level (MSL) rating of 1, which means it can withstand normal humidity levels. However, it's not designed for immersion in water or exposure to high-pressure water jets. For harsh environments, consider using a connector with a higher MSL rating or additional sealing measures.
The recommended mating cycle for the TMS-128-56-G-S connector is 500-1000 cycles, depending on the application and environmental conditions. Exceeding this cycle count may affect the connector's reliability and performance.
