TMS-145-55-T-S footprint, schematic symbol and 3D model by SAMTEC

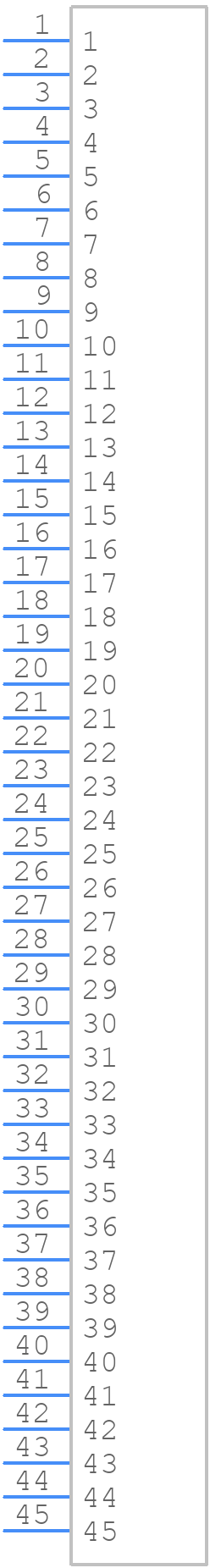

Symbol

click to zoom

PCB Footprints

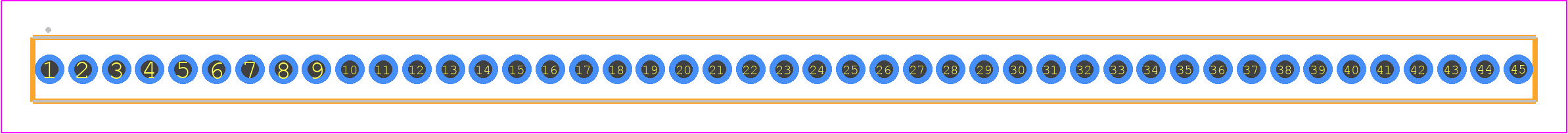

TMS-145-55-T-S - SAMTEC PCB footprint - Other - Other - TMS-145-YY-XX-S

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for TMS-145-55-T-S
Part Number TMS-145-55-T-S
Manufacturer SAMTEC
Pin Count 45
Part Category Connector
Package Category Other
Footprint Name Other - TMS-145-YY-XX-S
Released Date Jun 17, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

TMS-145-55-T-S Details

Manufacturer Part Number:
TMS-145-55-T-S
Manufacturer:
Samtec Inc

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

TMS-145-55-T-S Overview

Use the download button to access the TMS-145-55-T-S schematic symbol and PCB footprint.
