TMS-150-02-T-S footprint, schematic symbol and 3D model by SAMTEC

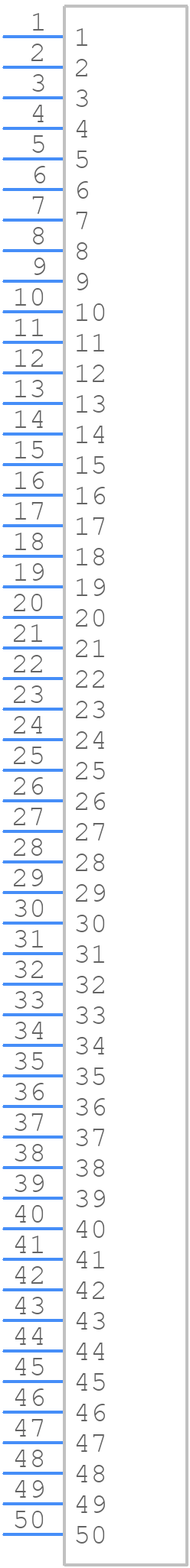

Symbol

click to zoom

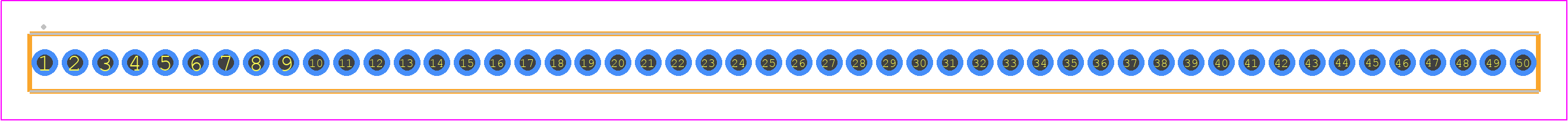

PCB Footprints

TMS-150-02-T-S - SAMTEC PCB footprint - Other - Other - TMS-150-YY-XX-S

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for TMS-150-02-T-S
Part Number TMS-150-02-T-S
Manufacturer SAMTEC
Pin Count 50
Part Category Connector
Package Category Other
Footprint Name Other - TMS-150-YY-XX-S
Released Date Jun 17, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

TMS-150-02-T-S Details

Manufacturer Part Number:
TMS-150-02-T-S
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Malaysia, USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
Samtec Inc
YTEOL:
9.15
Body Breadth:
0.196 inch
Body/Shell Style:
RECEPTACLE
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
TIN
Contact Finish Termination:
Tin (Sn) - with Nickel (Ni) barrier
Contact Gender:
MALE
Contact Material:
PHOSPHOR BRONZE
Contact Pattern:
RECTANGULAR
Contact Style:
SQ PIN-SKT
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulator Color:
BLACK
Insulator Material:
POLYAMIDE
JESD-609 Code:
e3
MIL Conformance:
NO
Mating Contact Pitch:
0.05 inch
Mixed Contacts:
NO
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number Of PCB Rows:
1
Number of Rows Loaded:
1
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
PCB Contact Pattern:
RECTANGULAR
Rated Current (Signal):
5 A
Reference Standard:
UL
Terminal Length:
0.12 inch
Terminal Pitch:
1.27 mm
Termination Type:
SOLDER
Total Number of Contacts:
50

TMS-150-02-T-S Frequently Asked Questions (FAQs)

The recommended torque for the screws on the TMS-150-02-T-S connector is 1.5-2.5 in-lbs (0.17-0.28 Nm) according to Samtec's application notes.
Yes, the TMS-150-02-T-S connector is designed to withstand vibration and shock according to IEC 61373 Cat 1, Class B standards. However, it's recommended to consult with Samtec's technical support for specific application requirements.
The maximum operating temperature for the TMS-150-02-T-S connector is 125°C (257°F) according to the datasheet. However, it's recommended to consult with Samtec's technical support for specific application requirements.
Yes, the TMS-150-02-T-S connector is RoHS and REACH compliant, meeting the requirements of the European Union's directives for restricted substances.
The recommended mating cycle for the TMS-150-02-T-S connector is 500-1000 cycles according to Samtec's application notes. However, this may vary depending on the specific application and environmental conditions.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

TMS-150-02-T-S Overview

Use the download button to access the TMS-150-02-T-S schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like TMS-1, or try a keyword search, such as Headers and Edge Type Connectors
