TN2-L2-12V - Panasonic

Description: RELAY, SIGNAL, DPDT, 30VDC, 1A; Coil Voltage:12VDC; Contact Configuration:DPDT; Contact Current:1A; Product Range:-; Relay Mounting:Through Hole; Coil Type:Latching Dual Coil; Relay Terminals:Solder; Contact Voltage VAC:- RoHS Compliant: Yes

Download TN2-L2-12V Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

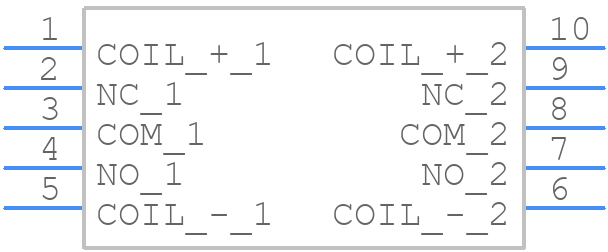

TN2-L2-12V - Panasonic - PCB symbol
click to zoom
PCB Footprints
TN2-L2-12V - Panasonic PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - TN2-12V
click to zoom
3D Models
TN2-L2-12V - Panasonic - 3D model - Dual-In-Line Sockets - TN2-12V
click to zoom

TN2-L2-12V Details

  • Manufacturer Part Number:

    TN2-L2-12V

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.49.00.50

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    0

  • Body Breadth:

    5.6 mm

  • Body Height:

    9.8 mm

  • Body Length or Diameter:

    14 mm

  • Coil Current(DC)-Max:

    0.017 A

  • Coil Operate Voltage(DC):

    9 V

  • Coil Power:

    200 mW

  • Coil Release Voltage(DC):

    9 V

  • Coil Resistance:

    720 Ω

  • Coil Voltage(DC)-Max:

    12 V

  • Coil/Input Supply Type:

    DC

  • Contact (AC) Max Rating R Load:

    1A@125VAC

  • Contact Current(AC)-Max:

    1 A

  • Contact Current(DC)-Max:

    1 A

  • Contact (DC) Max Rating R Load:

    1A@110VDC

  • Contact Voltage(AC)-Max:

    125 V

  • Contact Voltage(DC)-Max:

    110 V

  • Contact/Output Supply Type:

    AC/DC

  • Electrical Life:

    100000 Cycle(s)

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT MOUNT

  • Operate Time:

    3 ms

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    BOX; TUBE

  • Physical Dimension:

    14mm x 5.6mm x 9.8mm

  • Reference Standard:

    CSA; UL

  • Relay Action:

    LATCHED

  • Relay Function:

    DPDT

  • Relay Type:

    POWER/SIGNAL RELAY

  • Release Time:

    3 ms

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER

TN2-L2-12V Frequently Asked Questions (FAQs)

  • The maximum switching frequency of the TN2-L2-12V relay is 20 Hz. However, it's recommended to consult with Panasonic's application engineers to determine the suitable switching frequency for your specific application.
  • The TN2-L2-12V relay is designed to operate in temperatures ranging from -40°C to 85°C. However, the relay's performance and lifespan may be affected at extreme temperatures. It's recommended to consult with Panasonic's application engineers to determine the relay's suitability for your specific application.
  • Panasonic recommends a minimum spacing of 1.5 mm between the relay and other components on the PCB to ensure proper heat dissipation and to prevent electrical interference. It's also recommended to follow Panasonic's recommended PCB layout guidelines to ensure reliable operation.
  • The TN2-L2-12V relay is designed to withstand vibrations up to 10 G (10-55 Hz). However, it's recommended to consult with Panasonic's application engineers to determine the relay's suitability for your specific application and to discuss any necessary precautions or modifications.
  • Panasonic recommends derating the relay's current capacity by 1.5% per degree Celsius above 40°C to ensure reliable operation. It's recommended to consult with Panasonic's application engineers to determine the suitable derating curve for your specific application.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TN2-L2-12V Overview

Use the download button to access the TN2-L2-12V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TN2-L, or try a keyword search, such as Power/Signal Relays
