TN4050HP-12L2Y - STMicroelectronics

Description: 1200 V, 40 A Automotive Grade AEC-Q101 SCR Thyristor in HU3PAK,IT(RMS) 40 A,VDRM/VRRM 1200 V,VDSM/VRSM 1400 V,IGT 50 mA,Tj -40 to 150 °C.

Download TN4050HP-12L2Y Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

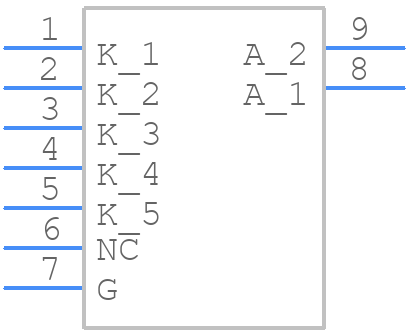

Symbol
TN4050HP-12L2Y - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
TN4050HP-12L2Y - STMicroelectronics PCB footprint - Other - Other - TN4050HP-12L2Y-2
click to zoom
3D Models
TN4050HP-12L2Y - STMicroelectronics - 3D model - Other - TN4050HP-12L2Y-2
click to zoom

TN4050HP-12L2Y Details

  • Manufacturer Part Number:

    TN4050HP-12L2Y

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • Manufacturer:

    STMicroelectronics

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn) - annealed

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TN4050HP-12L2Y Overview

Use the download button to access the TN4050HP-12L2Y schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TN405, or try a keyword search, such as Silicon Controlled Rectifiers
