The maximum output power of the TNY253GN-TL is 25W, but it can be derated based on the input voltage, output voltage, and ambient temperature.
To ensure the TNY253GN-TL operates within its SOA, follow the guidelines in the datasheet for input voltage, output voltage, output current, and ambient temperature. Also, make sure to provide adequate heat sinking and thermal management.
The BYPASS pin is used to connect an external bypass capacitor to improve the power supply's noise immunity and electromagnetic compatibility (EMC). It is recommended to connect a 10nF to 100nF capacitor between the BYPASS pin and the GND pin.
When selecting a transformer for the TNY253GN-TL, consider the input voltage, output voltage, and power rating. The transformer's turns ratio, inductance, and core material should be chosen to ensure efficient energy transfer and minimize losses.
For optimal performance and reliability, follow the recommended PCB layout and design guidelines in the datasheet, including keeping the input and output stages separate, using a solid ground plane, and minimizing loop areas.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TNY253GN-TL Overview

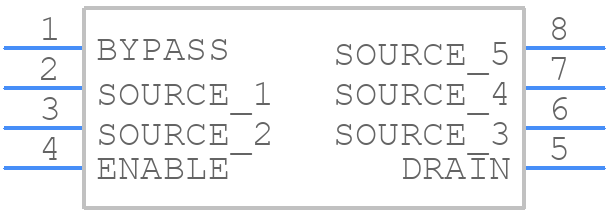

Use the download button to access the TNY253GN-TL schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like TNY25,
or try a keyword search, such as Switching Regulator or Controllers
