TNY254GN-TL - Power Integrations

Description: Converter Offline Flyback Topology 44kHz 8-SMD ,4 W , 700V , -40°C ~ 150°C (TJ)

Download TNY254GN-TL Model

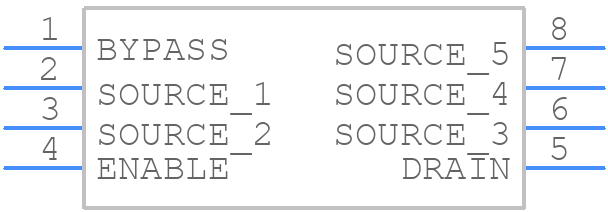

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TNY254GN-TL - Power Integrations PCB footprint - Other - Other - 8-SMD_2025-1
click to zoom

TNY254GN-TL Details

  • Manufacturer Part Number:

    TNY254GN-TL

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Power Integrations

  • YTEOL:

    3

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • JESD-30 Code:

    R-PDSO-G8

  • Moisture Sensitivity Level:

    4

  • Number of Terminals:

    8

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    GWDIP8,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Qualification Status:

    Not Qualified

  • Supply Current-Max (Isup):

    0.2 mA

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

TNY254GN-TL Frequently Asked Questions (FAQs)

  • The maximum output power of the TNY254GN-TL is 25W, but it can be derated based on the input voltage, output voltage, and ambient temperature.
  • To ensure the TNY254GN-TL operates within its SOA, follow the guidelines in the datasheet for input voltage, output voltage, output current, and ambient temperature. Also, make sure to provide adequate heat sinking and thermal management.
  • The BYPASS pin is used to connect an external bypass capacitor to improve the power supply rejection ratio (PSRR) and reduce output voltage ripple.
  • Yes, the TNY254GN-TL is suitable for use in flyback converter topologies, but ensure that the transformer is designed to meet the required specifications and the output voltage is within the recommended range.
  • Follow the recommended PCB layout guidelines in the datasheet, including keeping the input and output traces separate, using a solid ground plane, and minimizing the loop area of the transformer and output diode.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TNY254GN-TL Overview

Use the download button to access the TNY254GN-TL schematic symbol and PCB footprint.
