Technical Content
Part Image

TNY254P - Power Integrations

Description: IC OFFLINE SWITCH FLYBACK 8DIP

Download TNY254P Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

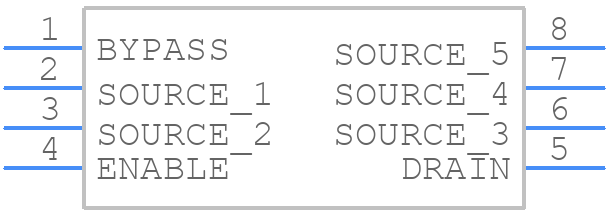

Symbol
TNY254P - Power Integrations - PCB symbol
click to zoom
PCB Footprints
TNY254P - Power Integrations PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - PDIP-8
click to zoom
3D Models
TNY254P - Power Integrations - 3D model - Dual-In-Line Packages - PDIP-8
click to zoom

TNY254P Details

  • Manufacturer Part Number:

    TNY254P

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Power Integrations

  • YTEOL:

    0

  • Analog IC - Other Type:

    LOAD SWITCH

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e0

  • Length:

    9.59 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.4 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.45 mm

  • Supply Current-Max (Isup):

    0.38 mA

  • Surface Mount:

    NO

  • Switcher Configuration:

    SINGLE

  • Switching Frequency-Max:

    48 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

TNY254P Frequently Asked Questions (FAQs)

  • The TNY254P is a 25-watt offline switcher IC, so it can handle up to 25 watts of output power.
  • To ensure the TNY254P operates within its SOA, follow the guidelines in the datasheet for maximum drain-source voltage, drain current, and power dissipation. Also, make sure to provide adequate heat sinking and thermal management.
  • The BYPASS pin is used to connect an external bypass capacitor to the internal voltage regulator. This helps to reduce noise and improve the overall stability of the IC.
  • When selecting a transformer for your TNY254P-based design, consider factors such as the input voltage, output voltage, and power rating. The transformer's turns ratio, magnetizing inductance, and leakage inductance also play a crucial role in the design. Consult the datasheet and application notes for guidance.
  • For optimal performance and reliability, follow good PCB design practices such as keeping the layout compact, using a solid ground plane, and minimizing noise coupling. Also, ensure that the IC is properly decoupled and that the transformer is placed close to the IC.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TNY254P Overview

Use the download button to access the TNY254P schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TNY25, or try a keyword search, such as Switching Regulator or Controllers
