The maximum output power of the TNY265GN-TL depends on the input voltage, output voltage, and the transformer turns ratio. However, as a general guideline, it can deliver up to 65 W of output power with a 230 VAC input and a 12 V output.
The transformer selection depends on the output power, output voltage, and input voltage. Power Integrations provides a transformer selection guide in the application notes. Additionally, the transformer should have a turns ratio that matches the recommended value in the datasheet, and its magnetizing inductance should be within the recommended range.
The BYPASS pin is used to connect an external bypass capacitor to the internal voltage regulator. This pin allows the user to improve the noise immunity and transient response of the device by adding an external capacitor.
To ensure that the TNY265GN-TL operates within the SOA, the user should ensure that the input voltage, output voltage, and output current are within the recommended limits. Additionally, the user should also ensure that the device is operated within the recommended temperature range and that the thermal design is adequate to dissipate the heat generated by the device.
The recommended layout and PCB design for the TNY265GN-TL involves keeping the high-voltage and low-voltage circuits separate, using a multi-layer PCB with a solid ground plane, and minimizing the loop area of the high-frequency circuits. Power Integrations provides a reference design and layout guidelines in the application notes.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TNY265GN-TL Overview

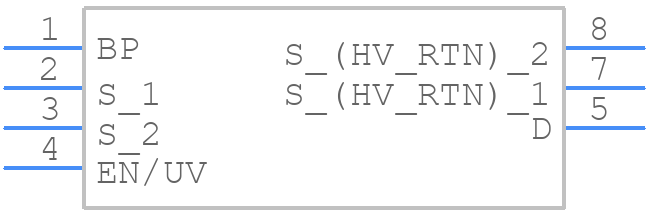

Use the download button to access the TNY265GN-TL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TNY26,
or try a keyword search, such as Switching Regulator or Controllers
