TOP210PFI - Power Integrations

Description: AC/DC Converters 5W 85-265 VAC 8W100/115/230 VAC DIP-8

Download TOP210PFI Model

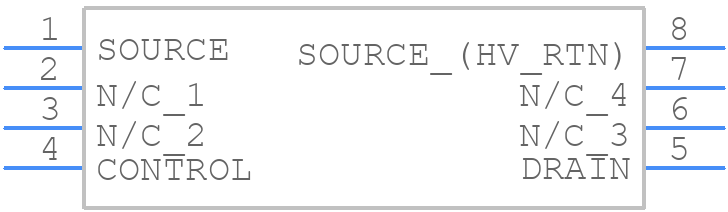

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TOP210PFI - Power Integrations PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - PDIP-8 (P Package)
click to zoom
3D Models
TOP210PFI - Power Integrations  - 3D model - Dual-In-Line Packages - PDIP-8 (P Package)
click to zoom

TOP210PFI Details

  • Manufacturer Part Number:

    TOP210PFI

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    PLASTIC, MS-001AB, DIP-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Power Integrations

  • YTEOL:

    0

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Min:

    36 V

  • JESD-30 Code:

    R-PDIP-T8

  • Length:

    9.59 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.1 A

  • Output Voltage-Nom:

    5.7 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.45 mm

  • Surface Mount:

    NO

  • Switcher Configuration:

    SINGLE

  • Switching Frequency-Max:

    110 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    7.62 mm

TOP210PFI Frequently Asked Questions (FAQs)

  • The maximum output power of the TOP210PFI depends on the input voltage, output voltage, and current. However, the device is typically rated for up to 10W of output power.
  • To ensure the TOP210PFI operates within its SOA, follow the guidelines in the datasheet for input voltage, output voltage, and current. Additionally, ensure proper thermal management and heat sinking to prevent overheating.
  • The BYPASS pin is used to connect an external bypass capacitor to improve the power supply rejection ratio (PSRR) and reduce output voltage ripple.
  • Yes, the TOP210PFI can be used in a flyback converter topology. However, it's essential to follow the guidelines in the datasheet and application notes for proper design and layout to ensure reliable operation.
  • To optimize the transformer design, follow the guidelines in the datasheet and application notes for transformer design, including selecting the correct core material, turns ratio, and wire size.
