The maximum output power of the TOP221PN depends on the input voltage, output voltage, and the transformer design. However, as a general guideline, the TOP221PN can deliver up to 22W of output power with a suitable transformer design.
Choosing the right transformer for the TOP221PN involves considering factors such as the input voltage, output voltage, output power, and the desired level of isolation. Power Integrations provides a transformer design tool on their website to help with this process.
The TOP221PN can handle input voltages up to 305VAC, making it suitable for use in a wide range of applications, including those with high input voltage requirements.
To ensure that the TOP221PN operates within its SOA, it's essential to follow the guidelines outlined in the datasheet, including the maximum input voltage, output current, and power dissipation. Additionally, proper thermal management and heat sinking are crucial to prevent overheating.
Yes, the TOP221PN is suitable for use in flyback converter topologies, thanks to its integrated high-voltage power MOSFET and control circuitry. However, it's essential to follow the guidelines outlined in the datasheet and application notes to ensure proper operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TOP221PN Overview

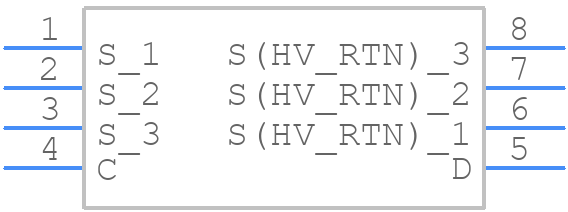

Use the download button to access the TOP221PN schematic symbol, PCB footprint, and 3D model.
