TORX1950A(F) - Toshiba

Description: Optical Receiver 10Mbps Single 50m 6-Pin )

Download TORX1950A(F) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

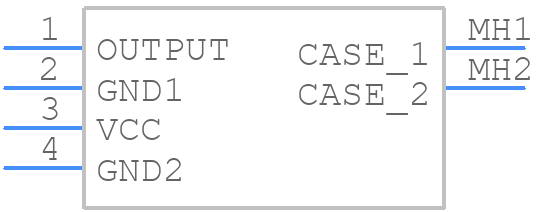

Symbol
TORX1950A(F) - Toshiba - PCB symbol
click to zoom
PCB Footprints
TORX1950A(F) - Toshiba PCB footprint - Other - Other - TORX1950A(F)-2
click to zoom
3D Models
TORX1950A(F) - Toshiba - 3D model - Other - TORX1950A(F)-2
click to zoom

TORX1950A(F) Details

  • Manufacturer Part Number:

    TORX1950A(F)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PACKAGE-6

  • Date Of Intro:

    2016-05-20

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    5

  • Body Height:

    8.5 mm

  • Body Length or Diameter:

    15.5 mm

  • Connection Type:

    F05 CONNECTOR

  • Data Rate:

    10 Mbps

  • Fiber Optic Device Type:

    RECEIVER

  • Fiber Type:

    980/1000, POF

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

TORX1950A(F) Frequently Asked Questions (FAQs)

  • The recommended land pattern for TORX1950A(F) is a rectangular pad with a size of 2.5mm x 1.6mm, with a solder mask opening of 2.2mm x 1.3mm.
  • The thermal pad of TORX1950A(F) should be connected to a solid copper plane on the PCB to ensure good thermal dissipation. A thermal relief pattern can be used to connect the thermal pad to the copper plane.
  • The maximum operating temperature range for TORX1950A(F) is -40°C to 125°C, with a storage temperature range of -40°C to 150°C.
  • To ensure the reliability of TORX1950A(F) in high-humidity environments, it is recommended to use a moisture-resistant coating or conformal coating on the PCB, and to follow proper handling and storage procedures to prevent moisture absorption.
  • The recommended soldering profile for TORX1950A(F) is a peak temperature of 260°C, with a soldering time of 3-5 seconds. A soldering iron with a temperature range of 200-300°C can be used.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TORX1950A(F) Overview

Use the download button to access the TORX1950A(F) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TORX1, or try a keyword search, such as Fiber Optic Receivers
