TORX1952A(F) - Toshiba

Description: Fiber-Coupler(TOSLINK), DC to 10 Mbps, Receiver , −40°C to 95°C , −0.5V to 6V , 20mA ,

Download TORX1952A(F) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

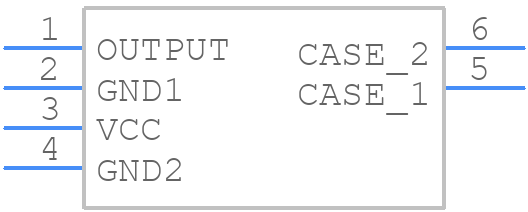

TORX1952A(F) - Toshiba - PCB symbol
click to zoom
PCB Footprints

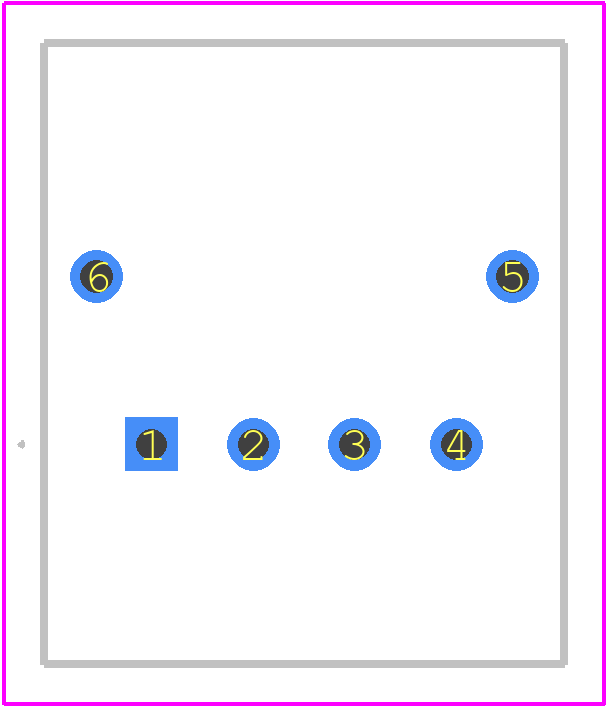

TORX1952A(F) - Toshiba PCB footprint - Other - Other - TORX1952A(F)-1
click to zoom
3D Models
TORX1952A(F) - Toshiba - 3D model - Other - TORX1952A(F)-1
click to zoom

TORX1952A(F) Details

  • Manufacturer Part Number:

    TORX1952A(F)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PACKAGE-6

  • Factory Lead Time:

    28 Weeks

  • Date Of Intro:

    2016-05-20

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    5

  • Body Height:

    8.5 mm

  • Body Length or Diameter:

    15.5 mm

  • Connection Type:

    F05 CONNECTOR

  • Data Rate:

    10 Mbps

  • Fiber Optic Device Type:

    RECEIVER

  • Fiber Type:

    980/1000, POF

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO
