TOSW-230 - Mini-Circuits

TOSW-230 Details

• Manufacturer Part Number:

  TOSW-230

• Pbfree Code:

  No

• Part Life Cycle Code:

  Obsolete

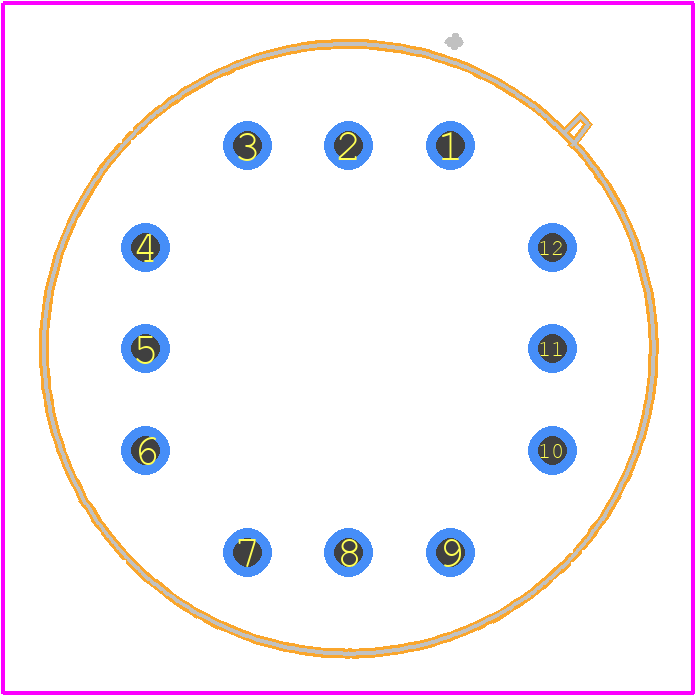

• Package Description:

  CASE QQ96, 12 PIN

• ECCN Code:

  EAR99

• HTS Code:

  8536.50.70.00

• Manufacturer:

  Mini-Circuits

• YTEOL:

  0

• 1dB Compression Point:

  19 dBm

• Characteristic Impedance:

  50 Ω

• Construction:

  COMPONENT

• Input Power-Max (CW):

  30 dBm

• Insertion Loss-Max:

  2.7 dB

• Isolation-Min:

  22 dB

• JESD-609 Code:

  e0

• Number of Functions:

  1

• Number of Terminals:

  12

• Operating Frequency-Max:

  3000 MHz

• Operating Frequency-Min:

  10 MHz

• Operating Temperature-Max:

  100 °C

• Operating Temperature-Min:

  -55 °C

• Package Body Material:

  METAL

• Package Equivalence Code:

  CAN12,.4

• Power Supplies:

  5 V

• RF/Microwave Device Type:

  SPDT

• Terminal Finish:

  Tin/Lead (Sn/Pb)

• VSWR-Max:

  1.9
