TOTX1950(F) - Toshiba

Description: GENERAL PURPOSE OPTICAL TRANSMITTING MODULE

Download TOTX1950(F) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

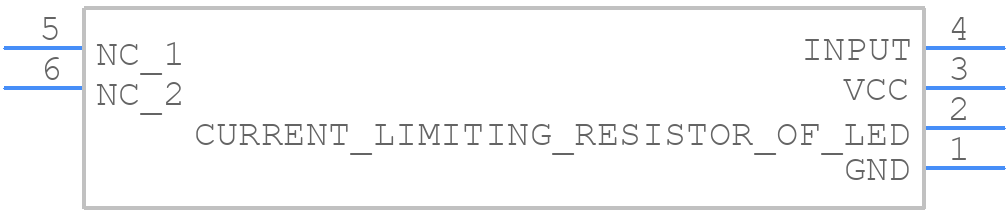

TOTX1950(F) - Toshiba - PCB symbol
click to zoom
PCB Footprints
TOTX1950(F) - Toshiba PCB footprint - Other - Other - TOTX1950(F)
click to zoom
3D Models
TOTX1950(F) - Toshiba - 3D model - Other - TOTX1950(F)
click to zoom

TOTX1950(F) Details

  • Manufacturer Part Number:

    TOTX1950(F)

  • Part Life Cycle Code:

    Obsolete

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    0

  • Body Breadth:

    13 mm

  • Body Height:

    8.5 mm

  • Body Length or Diameter:

    15.5 mm

  • Data Rate:

    10 Mbps

  • Emitter/Detector Type:

    LED

  • Fiber Optic Device Type:

    TRANSMITTER

  • Fiber Type:

    980/1000, POF

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Operating Wavelength-Nom:

    650 nm

  • Optical Power Output-Nom:

    0.063 mW

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Terminal Finish:

    NOT SPECIFIED

  • Transmission Type:

    DIGITAL
