TP2272-SR - 3Peak Incorporated

Description: 36V Single Supply, 7MHz Bandwidth, RRO Op-amps

Download TP2272-SR Model

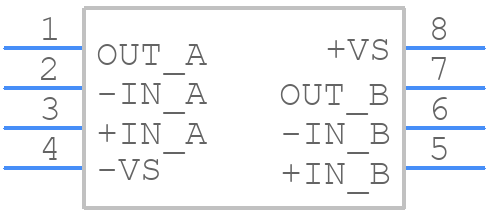

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TP2272-SR - 3Peak Incorporated PCB footprint - Small Outline Packages - Small Outline Packages - SOP-8 (SOIC-8)
click to zoom
3D Models
TP2272-SR - 3Peak Incorporated  - 3D model - Small Outline Packages - SOP-8 (SOIC-8)
click to zoom

TP2272-SR Details

  • Manufacturer Part Number:

    TP2272-SR

  • Part Life Cycle Code:

    Contact Manufacturer

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    3peak Incorporated

  • Amplifier Type:

    OPERATIONAL AMPLIFIER
