TPC112S1-VR - 3Peak Incorporated

Description: 8-MSOP

Download TPC112S1-VR Model

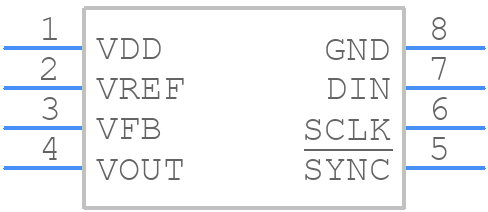

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TPC112S1-VR - 3Peak Incorporated PCB footprint - Small Outline Packages - Small Outline Packages - MSOP 8
click to zoom
3D Models
TPC112S1-VR - 3Peak Incorporated  - 3D model - Small Outline Packages - MSOP 8
click to zoom

TPC112S1-VR Details

  • Manufacturer Part Number:

    TPC112S1-VR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    MSOP-8

  • HTS Code:

    8542.39.00.40

  • Factory Lead Time:

    11 Weeks

  • Manufacturer:

    3peak Incorporated

  • Analog Output Voltage-Max:

    5.4 V

  • Analog Output Voltage-Min:

    0.2 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PDSO-G8

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.048828%

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Seated Height-Max:

    1.2 mm

  • Settling Time-Nom (tstl):

    14 µs

  • Supply Current-Max:

    0.13 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

TPC112S1-VR Frequently Asked Questions (FAQs)

  • For optimal performance, it's recommended to follow a 4-layer PCB stackup with a dedicated ground plane, and to use thermal vias and a heat sink to dissipate heat. A minimum of 2oz copper thickness is recommended for the top and bottom layers.
  • To ensure reliable operation, it's essential to follow the recommended operating conditions, including voltage, current, and temperature. Additionally, consider using thermal protection and overcurrent protection circuits to prevent damage from overheating or overcurrent conditions.
  • The TPC112S1-VR has built-in ESD protection diodes on all pins, and the device is designed to prevent latch-up. However, it's still recommended to follow proper ESD handling procedures during assembly and testing, and to use ESD protection devices on the PCB if necessary.
  • Yes, the TPC112S1-VR is designed for high-reliability applications. However, it's essential to follow the recommended operating conditions, and to perform thorough testing and validation to ensure the device meets the specific requirements of your application.
  • The recommended soldering temperature is 260°C (peak temperature) for a maximum of 10 seconds. It's also recommended to use a soldering iron with a temperature-controlled tip, and to follow the recommended PCB assembly and cleaning procedures to prevent damage or contamination.
