TPC8118(TE12L,Q) footprint, schematic symbol and 3D model by Toshiba

Symbol

click to zoom

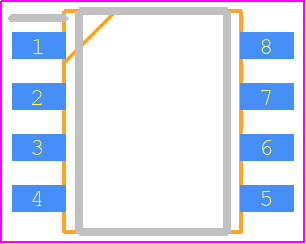

PCB Footprints

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for TPC8118(TE12L,Q)
Part Number TPC8118(TE12L,Q)
Manufacturer Toshiba
Pin Count 8
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - 2-6J1B_
Released Date Apr 15, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

TPC8118(TE12L,Q) Details

Manufacturer Part Number:
TPC8118(TE12L,Q)
Part Life Cycle Code:
Obsolete
ECCN Code:
EAR99
Manufacturer:
Toshiba America Electronic Components
YTEOL:
0
Avalanche Energy Rating (Eas):
110 mJ
Configuration:
SINGLE WITH BUILT-IN DIODE
DS Breakdown Voltage-Min:
30 V
Drain Current-Max (ID):
13 A
Drain-source On Resistance-Max:
0.015 Ω
FET Technology:
METAL-OXIDE SEMICONDUCTOR
Feedback Cap-Max (Crss):
600 pF
JESD-30 Code:
R-PDSO-G8
Number of Elements:
1
Number of Terminals:
8
Operating Mode:
ENHANCEMENT MODE
Operating Temperature-Max:
150 °C
Package Body Material:
PLASTIC/EPOXY
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Polarity/Channel Type:
P-CHANNEL
Pulsed Drain Current-Max (IDM):
52 A
Surface Mount:
YES
Terminal Form:
GULL WING
Terminal Position:
DUAL
Transistor Application:
SWITCHING
Transistor Element Material:
SILICON

TPC8118(TE12L,Q) Frequently Asked Questions (FAQs)

Toshiba recommends a PCB layout with a thermal pad connected to a large copper area on the bottom layer, and multiple vias to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
The TPC8118 requires a stable input voltage (VIN) and a proper biasing of the VCC pin. Ensure VIN is within the recommended range (8V to 18V) and VCC is biased to 5V ± 10% with a minimum of 10uF decoupling capacitor.
The maximum allowable power dissipation for the TPC8118 is 2.5W. Ensure the device is operated within this limit to prevent overheating and damage.
Use a voltage regulator or a transient voltage suppressor (TVS) to protect the device from overvoltage conditions. For undervoltage conditions, use a voltage supervisor or a reset IC to ensure the device is properly reset.
The TPC8118 is designed to operate at frequencies up to 100kHz. However, the recommended operating frequency range is 50kHz to 80kHz for optimal performance and efficiency.

Trust Checks

Community Provided

System Verified

Community Approved

TPC8118(TE12L,Q) Overview

Use the download button to access the TPC8118(TE12L,Q) schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like TPC81, or try a keyword search, such as Power Field-Effect Transistors
