TPCA8051-H(T2L1,VM - Toshiba

Description: Pb-F POWER MOSFET TRANSISTOR SOP-8-ADV MOQ=3000 V=80 PD=45W F=1MHZ

Download TPCA8051-H(T2L1,VM Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

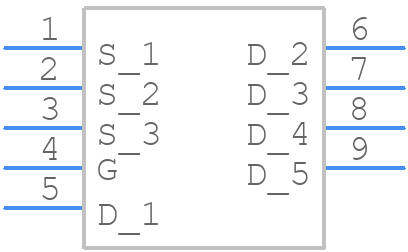

TPCA8051-H(T2L1,VM - Toshiba - PCB symbol
click to zoom
PCB Footprints

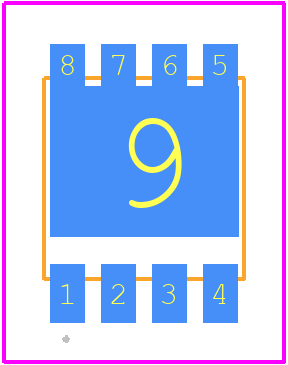

TPCA8051-H(T2L1,VM - Toshiba PCB footprint - Other - Other - 2-5Q1A-2021
click to zoom
3D Models
TPCA8051-H(T2L1,VM - Toshiba - 3D model - Other - 2-5Q1A-2021
click to zoom

TPCA8051-H(T2L1,VM Details

  • Manufacturer Part Number:

    TPCA8051-H(T2L1,VM

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT, THIN, 2-5Q1A, 8 PIN

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    0

  • Avalanche Energy Rating (Eas):

    255 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    80 V

  • Drain Current-Max (ID):

    28 A

  • Drain-source On Resistance-Max:

    0.0098 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    210 pF

  • JESD-30 Code:

    S-PDSO-F5

  • Number of Elements:

    1

  • Number of Terminals:

    5

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    45 W

  • Pulsed Drain Current-Max (IDM):

    84 A

  • Surface Mount:

    YES

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

TPCA8051-H(T2L1,VM Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the TPCA8051-H is -40°C to 125°C.
  • The TPCA8051-H has a built-in POR and BOD circuitry. The POR ensures that the device resets properly during power-up, and the BOD detects voltage drops and resets the device if the voltage falls below a certain threshold. No external components are required to handle POR and BOD.
  • The TPCA8051-H supports a maximum clock frequency of 24 MHz.
  • The UART interface on the TPCA8051-H can be configured using the UART control registers. The baud rate, data bits, stop bits, and parity can be set using these registers. Refer to the datasheet for the register addresses and bit definitions.
  • The VDDIO pin is the power supply pin for the I/O circuits. It should be connected to a 1.8V to 3.6V power supply, depending on the I/O voltage requirement.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPCA8051-H(T2L1,VM Overview

Use the download button to access the TPCA8051-H(T2L1,VM schematic symbol, PCB footprint, and 3D model.
