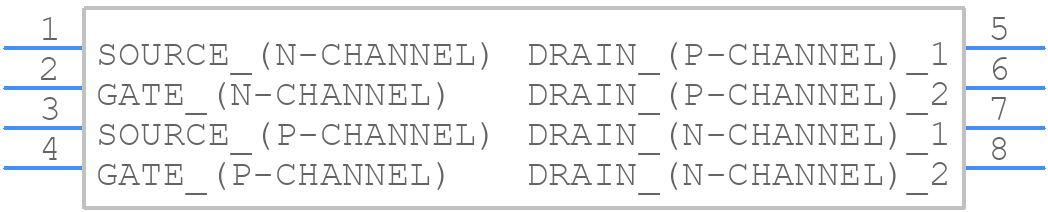

TPCP8407,LF - Toshiba

TPCP8407,LF Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal thermal performance?
  A thermal pad is recommended under the package to improve heat dissipation. A minimum of 2oz copper thickness and a thermal relief pattern are suggested. Refer to the Toshiba application note for more details.
• How do I ensure reliable operation in high-temperature environments?
  Ensure the device is operated within the recommended junction temperature (Tj) range of -40°C to 150°C. Implement proper thermal management, such as heat sinks or fans, to maintain a safe operating temperature.
• What are the ESD protection and handling precautions for this device?
  Handle the device with anti-static wrist straps, mats, or bags to prevent electrostatic discharge (ESD). The device has built-in ESD protection, but it's not a substitute for proper handling and storage procedures.
• Can I use this device in a high-reliability or automotive application?
  Yes, the TPCP8407,LF is AEC-Q100 qualified and suitable for automotive and high-reliability applications. However, ensure you follow the recommended operating conditions, and consult with Toshiba's technical support for specific requirements.
• What are the recommended soldering conditions for this device?
  Follow the recommended soldering profile: peak temperature 260°C, time above 217°C 30s, and time above 200°C 60s. Use a solder with a melting point above 217°C to prevent damage to the device.
