TPCP8505(TE85L,F) - Toshiba

Description: Toshiba TPCP8505(TE85L,F) NPN Bipolar Transistor, 3 A, 50 V, 8-Pin PS

Download TPCP8505(TE85L,F) Model

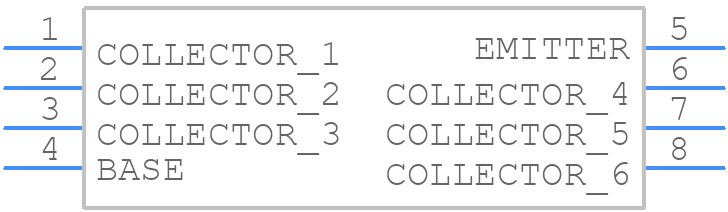

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TPCP8505(TE85L,F) - Toshiba PCB footprint - SO Transistor Flat Lead - SO Transistor Flat Lead - 2-3V1A
click to zoom
3D Models
TPCP8505(TE85L,F) - Toshiba  - 3D model - SO Transistor Flat Lead - 2-3V1A
click to zoom

TPCP8505(TE85L,F) Details

  • Manufacturer Part Number:

    TPCP8505(TE85L,F)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • ECCN Code:

    EAR99

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    4

  • Collector Current-Max (IC):

    3 A

  • Collector-Emitter Voltage-Max:

    50 V

  • Configuration:

    SINGLE

  • DC Current Gain-Min (hFE):

    200

  • JESD-30 Code:

    R-PDSO-F8

  • Number of Elements:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Polarity/Channel Type:

    NPN

  • Surface Mount:

    YES

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

  • VCEsat-Max:

    0.14 V

TPCP8505(TE85L,F) Frequently Asked Questions (FAQs)

  • Toshiba recommends a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended, and the thermal pad should be connected to a ground plane to reduce thermal resistance.
  • To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal design and layout guidelines. Additionally, consider using a heat sink or thermal interface material to reduce the junction temperature. Operating the device within the recommended temperature range (TJ = -40°C to 150°C) is also crucial.
  • Although the datasheet doesn't explicitly state the maximum allowed voltage on the input pins, it's generally recommended to limit the input voltage to the supply voltage (VCC) + 0.3V to prevent damage to the internal ESD protection diodes.
  • Yes, the TPCP8505 can be used as a switch or a multiplexer. Its high-speed switching capability and low on-resistance make it suitable for these applications. However, ensure that the device is operated within the recommended conditions and that the switching frequency is within the specified range.
  • To prevent ESD damage, follow proper handling and assembly procedures, such as using an ESD wrist strap, mat, or workstation. Ensure that the device is stored in an anti-static bag or tube, and avoid touching the pins or leads during handling.
