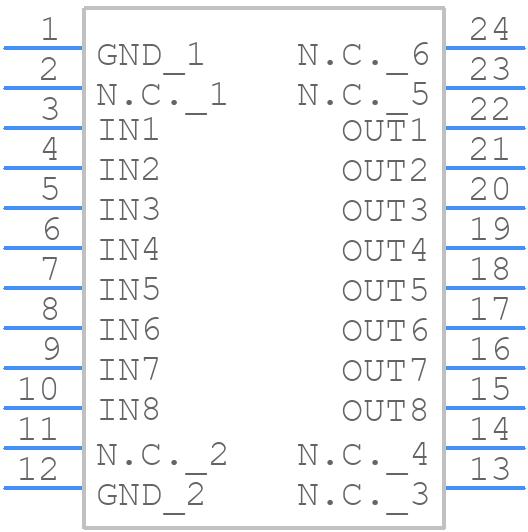

TPD2007F(EL1) - Toshiba

TPD2007F(EL1) Details

• Manufacturer Part Number:

  TPD2007F(EL1)

• Rohs Code:

  Yes

• Part Life Cycle Code:

  End Of Life

• Package Description:

  SSOP-24

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Toshiba America Electronic Components

• YTEOL:

  0.4

• Built-in Protections:

  TRANSIENT; OVER CURRENT; THERMAL

• Driver Number of Bits:

  8

• Input Characteristics:

  STANDARD

• Interface IC Type:

  BUFFER OR INVERTER BASED PERIPHERAL DRIVER

• JESD-30 Code:

  R-PDSO-G24

• Length:

  7.8 mm

• Number of Functions:

  1

• Number of Terminals:

  24

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Characteristics:

  OPEN-DRAIN

• Output Current Flow Direction:

  SINK

• Output Peak Current Limit-Nom:

  2 A

• Output Polarity:

  TRUE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SSOP

• Package Equivalence Code:

  SOP24,.3,40

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, SHRINK PITCH

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1.6 mm

• Supply Current-Max:

  0.3 mA

• Supply Voltage-Max:

  2 V

• Supply Voltage-Min:

  0.8 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1 mm

• Terminal Position:

  DUAL

• Turn-off Time:

  50 µs

• Turn-on Time:

  50 µs

• Width:

  5.6 mm
