TPD7106F - Toshiba

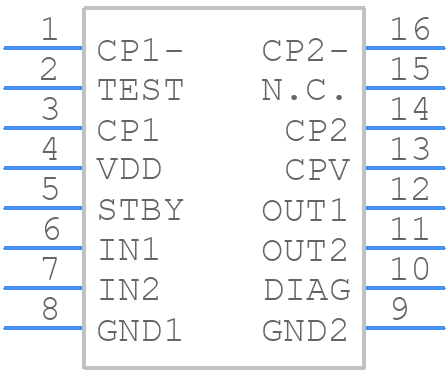

TPD7106F Details

• Manufacturer Part Number:

  TPD7106F

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  SSOP-16

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Toshiba America Electronic Components

• YTEOL:

  6

• High Side Driver:

  YES

• Input Characteristics:

  STANDARD

• Interface IC Type:

  BUFFER OR INVERTER BASED MOSFET DRIVER

• JESD-30 Code:

  R-PDSO-G16

• Length:

  5.5 mm

• Number of Functions:

  1

• Number of Terminals:

  16

• Operating Temperature-Max:

  150 °C

• Operating Temperature-Min:

  -40 °C

• Output Peak Current Limit-Nom:

  0.4 A

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SSOP

• Package Equivalence Code:

  SSOP16,.25

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, SHRINK PITCH

• Screening Level:

  AEC-Q100

• Seated Height-Max:

  1.6 mm

• Supply Current-Max:

  6 mA

• Supply Voltage-Max:

  27 V

• Supply Voltage-Min:

  4.5 V

• Supply Voltage-Nom:

  12 V

• Surface Mount:

  YES

• Technology:

  MOS

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Turn-off Time:

  500 µs

• Turn-on Time:

  500 µs

• Width:

  4.4 mm
