TPD7107F,BXH footprint, schematic symbol and 3D model by Toshiba

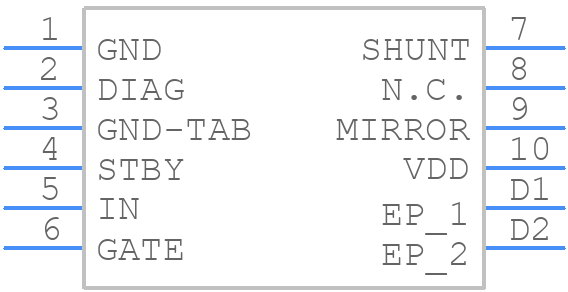

Symbol

PCB Footprints

3D Models

TPD7107F,BXH Details

Toshiba recommends a thermal pad connection to a large copper area on the PCB to dissipate heat efficiently. Ensure a minimum of 1oz copper thickness and a thermal via array under the package to improve thermal conductivity.
Choose an input capacitor with a low ESR (Equivalent Series Resistance) and sufficient capacitance to filter the input voltage ripple. A 10uF to 22uF ceramic capacitor with an ESR of <1 ohm is recommended.
Select an output capacitor with a low ESR and sufficient capacitance to filter the output voltage ripple. A 10uF to 22uF ceramic capacitor with an ESR of <1 ohm is recommended. Ensure the capacitor's voltage rating is higher than the output voltage.
Follow the recommended power-up and power-down sequences in the datasheet. Ensure a slow and controlled voltage ramp-up and ramp-down to prevent latch-up or damage to the device.
Keep the input and output capacitors close to the device, with short traces and minimal loop areas to reduce EMI. Use a solid ground plane and keep sensitive signal traces away from the switching node.

Community Provided

System Verified

Community Approved

Use the download button to access the TPD7107F,BXH schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like TPD71, or try a keyword search, such as MOSFET Drivers
