TPD7212F - Toshiba

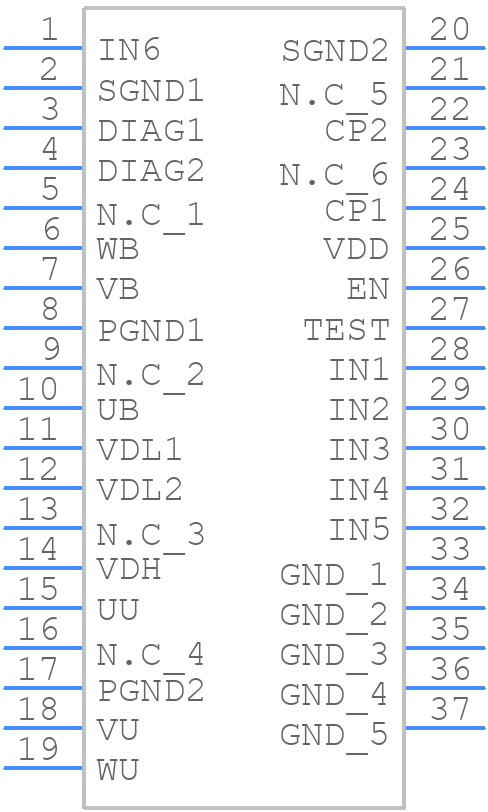

TPD7212F Details

• Manufacturer Part Number:

  TPD7212F

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  WQFN-32

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Date Of Intro:

  2018-07-04

• Manufacturer:

  Toshiba America Electronic Components

• YTEOL:

  7.3

• High Side Driver:

  YES

• Input Characteristics:

  STANDARD

• Interface IC Type:

  FULL BRIDGE BASED MOSFET DRIVER

• JESD-30 Code:

  S-PQCC-N32

• Length:

  5 mm

• Number of Functions:

  1

• Number of Terminals:

  32

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Characteristics:

  PUSH-PULL

• Output Polarity:

  TRUE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HWQCCN

• Package Equivalence Code:

  LCC32,.2SQ,20

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY VERY THIN PROFILE

• Seated Height-Max:

  0.75 mm

• Supply Current-Max:

  8 mA

• Supply Voltage-Max:

  18 V

• Supply Voltage-Min:

  4.5 V

• Supply Voltage-Nom:

  12 V

• Surface Mount:

  YES

• Technology:

  BCDMOS

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Turn-off Time:

  0.4 µs

• Turn-on Time:

  0.4 µs

• Width:

  5 mm
