TPE05F6M8 - TECH PUBLIC

Description: Low Capacitance 6-Line ESD Protection, Low operating voltage: 5V, Low capacitance: 12pF, TVS Diode bi-directional

Download TPE05F6M8 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this TPE05F6M8 model

Email notifications will be applied after download.

Send part feedback

Symbol

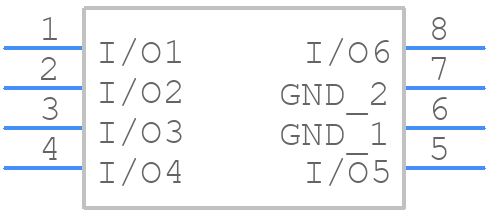

TPE05F6M8 - TECH PUBLIC - PCB symbol

PCB Footprints

TPE05F6M8 - TECH PUBLIC PCB footprint - Small Outline Packages - Small Outline Packages - MSOP-8_2026

Datasheet Download Datasheet
Stock & Prices Price & Stock for TPE05F6M8
Part Number TPE05F6M8
Manufacturer TECH PUBLIC
Pin Count 8
Part Category TVS Diode (Bi-directional)
Package Category Small Outline Packages
Footprint Name Small Outline Packages - MSOP-8_2026
Released Date Apr 3, 2026
Last Modified Date Apr 3, 2026 12:15 PM UTC
Pinout / Pin List Click Here (Member Only)

TPE05F6M8 Details
