A recommended PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and to use thermal vias to connect the thermal pad to the ground plane. This helps to dissipate heat efficiently.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating temperature range, ensure good thermal design, and consider using a heat sink or thermal interface material to reduce thermal resistance.
To prevent damage, handle the device by the body, avoid touching the pins, and store it in an anti-static bag or wrap it in anti-static material. Also, avoid exposing it to moisture, extreme temperatures, or physical stress.
While the TPH1R306P1,L1Q is a high-quality device, it's essential to consult with Toshiba's application engineers to determine its suitability for high-reliability or safety-critical applications, and to discuss any necessary qualifications, testing, or certifications.
Possible failure modes include overheating, electrical overstress, and physical damage. To mitigate these, ensure proper thermal design, follow the recommended operating conditions, and handle the device with care. Also, consider implementing protective circuits and redundancy in your design.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPH1R306P1,L1Q Overview

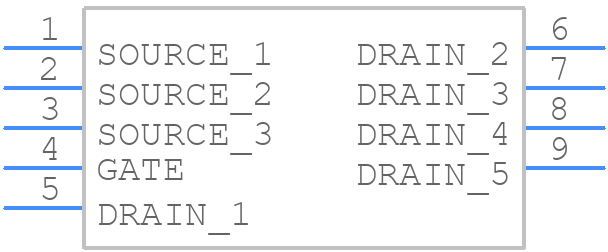

Use the download button to access the TPH1R306P1,L1Q schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like TPH1R,
or try a keyword search, such as Power Field-Effect Transistors
