TPI12011NRL - STMicroelectronics

Description: Tripolar protection for ISDN interfaces

Download TPI12011NRL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

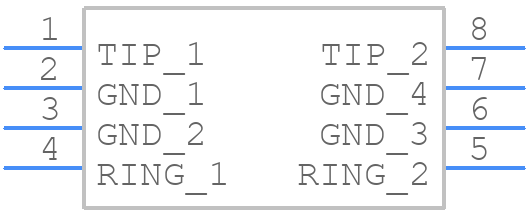

TPI12011NRL - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
TPI12011NRL - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO8 (150 mil width)
click to zoom
3D Models
TPI12011NRL - STMicroelectronics - 3D model - Small Outline Packages - SO8 (150 mil width)
click to zoom

TPI12011NRL Details

  • Manufacturer Part Number:

    TPI12011NRL

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, PLASTIC, SOP-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.30.00.80

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Breakover Voltage-Max:

    160 V

  • Configuration:

    DELTA CONNECTED, 3 ELEMENTS

  • JESD-30 Code:

    R-PDSO-G8

  • Non-Repetitive Pk On-state Cur:

    8 A

  • Number of Elements:

    3

  • Number of Terminals:

    8

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Trigger Device Type:

    SILICON SURGE PROTECTOR

TPI12011NRL Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the TPI12011NRL is -40°C to 125°C.
  • The TPI12011NRL requires a single 3.3V power supply, and it's recommended to use a decoupling capacitor of 10nF to 100nF between VCC and GND to ensure stable operation.
  • The maximum current rating for the TPI12011NRL is 1.5A per channel, with a total current limit of 3A for all channels combined.
  • The TPI12011NRL can be configured for high-side or low-side switching by connecting the appropriate pins to VCC or GND, respectively. Refer to the datasheet for specific pin connections and configuration details.
  • The EN (enable) pin is used to enable or disable the TPI12011NRL. When EN is high, the device is enabled, and when EN is low, the device is disabled and all outputs are turned off.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPI12011NRL Overview

Use the download button to access the TPI12011NRL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPI12, or try a keyword search, such as Silicon Surge Protectors

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
