The operating temperature range for the TPLC-3R8/10MR8X14 is -40°C to 125°C, with a storage temperature range of -40°C to 150°C.
Yes, the TPLC-3R8/10MR8X14 is RoHS and REACH compliant, making it suitable for use in environmentally conscious designs.
Tecate Group provides a recommended PCB layout and land pattern in their application notes, which can be found on their website or through direct contact with their technical support team.
Yes, the TPLC-3R8/10MR8X14 is designed to withstand high-vibration environments, with a vibration rating of 10-2000 Hz, 10G peak acceleration.
Tecate Group recommends a soldering profile with a peak temperature of 260°C, a dwell time of 10-30 seconds, and a soldering iron temperature of 350°C.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPLC-3R8/10MR8X14 Overview

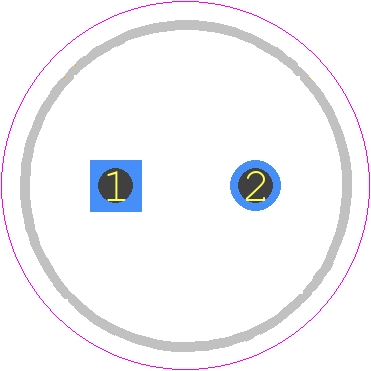

Use the download button to access the TPLC-3R8/10MR8X14 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPLC-,
or try a keyword search, such as Electric Double Layer Capacitors
