TPLH-3R0/100SS22X46 - Tecate Group

Description: 100 F (EDLC) Supercapacitor 3 V Radial, Can - Snap-In 12mOhm 1500 Hrs @ 65°C

Download TPLH-3R0/100SS22X46 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
TPLH-3R0/100SS22X46 - Tecate Group - PCB symbol
click to zoom
PCB Footprints

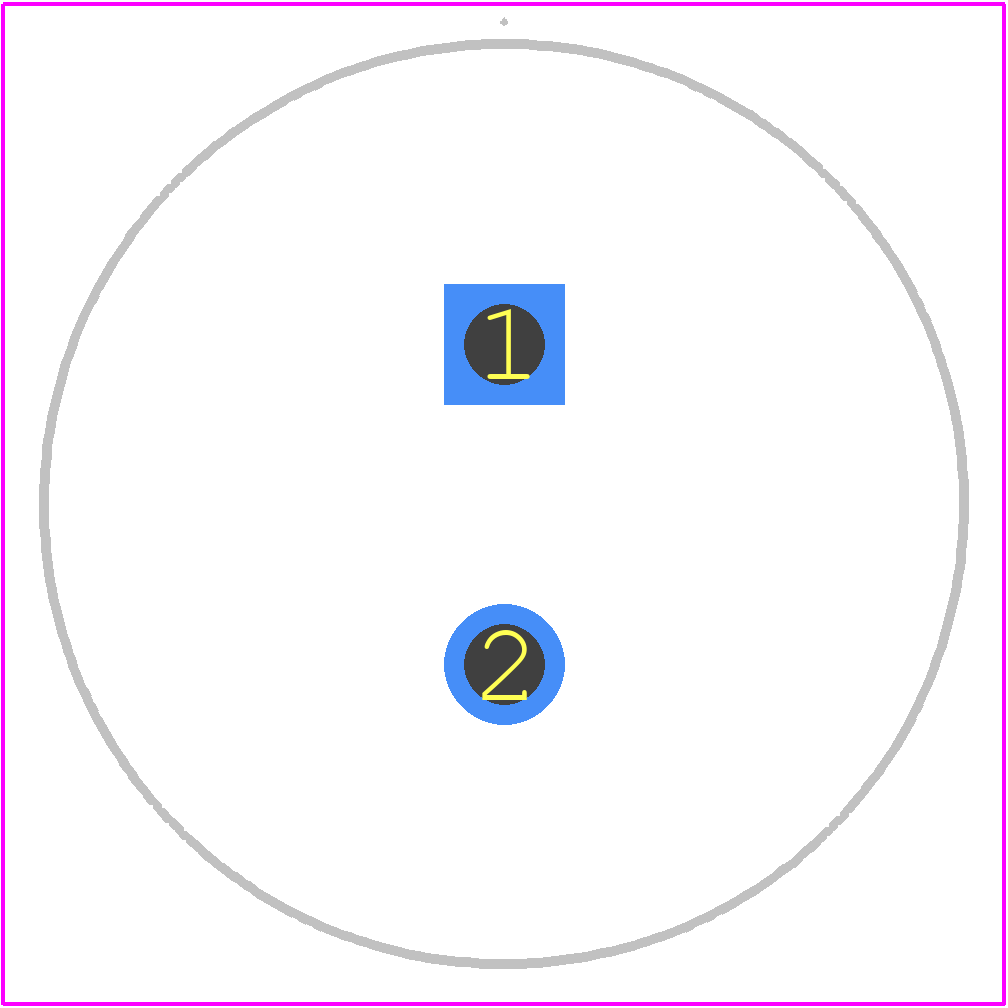

TPLH-3R0/100SS22X46 - Tecate Group PCB footprint - Other - Other - 22mm x 46mm_2025-1
click to zoom
3D Models
TPLH-3R0/100SS22X46 - Tecate Group - 3D model - Other - 22mm x 46mm_2025-1
click to zoom

TPLH-3R0/100SS22X46 Details

  • Manufacturer Part Number:

    TPLH-3R0/100SS22X46

  • Part Life Cycle Code:

    Active

  • Package Description:

    ,

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.29.00.40

  • Manufacturer:

    Tecate Group

  • YTEOL:

    6.95

  • Capacitance:

    100000000 µF

  • Capacitor Type:

    ELECTRIC DOUBLE LAYER CAPACITOR

  • Diameter:

    22 mm

  • Dielectric Material:

    ACTIVATED CARBON

  • Length:

    46 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Style:

    Snap-in

  • Rated (DC) Voltage (URdc):

    3 V

  • Reference Standard:

    UL

  • Surface Mount:

    NO

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN
