The recommended PCB layout involves keeping the device away from high-current paths and heat sources. A thermal pad on the bottom of the package should be connected to a solid copper plane on the PCB to dissipate heat. A minimum of 2oz copper thickness is recommended for the PCB.
To ensure reliable operation, it's essential to follow the recommended operating conditions, including voltage, current, and temperature. Additionally, ensure that the device is properly soldered, and the PCB is designed to minimize thermal gradients.
The TPM2003-SO3R has built-in ESD protection, but it's still important to follow standard ESD handling precautions, such as using an ESD wrist strap, mat, or workstation, and storing the devices in anti-static packaging.
While the TPM2003-SO3R is a high-quality device, it's essential to consult with 3peak Incorporated's sales team or application engineers to determine if the device meets the specific requirements of your high-reliability or aerospace application.
3peak Incorporated provides a set of recommended testing and inspection procedures, including visual inspection, solderability testing, and functional testing. It's essential to follow these procedures to ensure the device meets the required specifications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPM2003-SO3R Overview

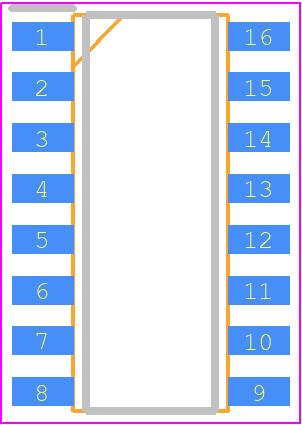

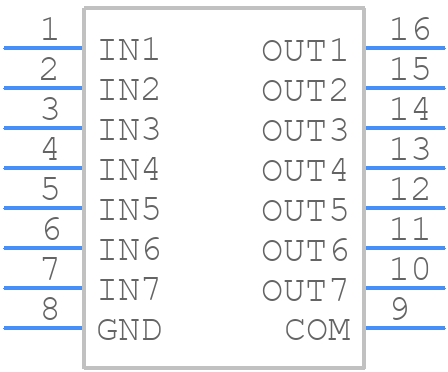

Use the download button to access the TPM2003-SO3R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPM20,
or try a keyword search, such as Peripheral Drivers
