TPM6501Q footprint, schematic symbol and 3D model by 3Peak Incorporated

TPM6501Q - 3Peak Incorporated

Description: • Low-Side Center-Tapped Transformer Driver • Automotive AEC-Q100 Grade-1 (TPM6501xQ only) • Low-Noise, Low EMI with Spread Spectrum – Switching Frequency 420 kHz (TPM6501A) – Switching Frequency 2.2 MHz(TPM6501B) • Support 2.25-V to 5.5-V Supply with 1-A Primary Side Current • Soft-Start and Current Limit Protection • Slew Rate and Switching Frequency Optimized for EMC • Over-Temperature Protection • SOT23-5 Package

Download TPM6501Q Model

Schematic
symbols

PCB
footprints

3D
models

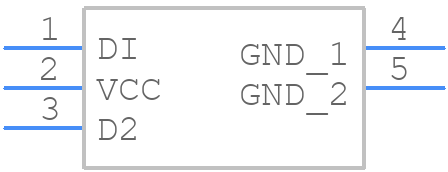

Symbol

click to zoom

PCB Footprints

click to zoom

3D Models

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for TPM6501Q
Part Number TPM6501Q
Manufacturer 3Peak Incorporated
Pin Count 5
Part Category Integrated Circuit
Package Category SOT23 (5-Pin)
Footprint Name SOT23 (5-Pin) - SC5(SOT353-5-A)
Released Date Jan 13, 2025
Last Modified Date Jan 13, 2025 12:16 PM UTC
Pinout / Pin List Click Here (Member Only)

TPM6501Q Details

Manufacturer Part Number:
TPM6501Q
Manufacturer:
3peak Incorporated

Trust Checks

System Verified

TPM6501Q Overview

Use the download button to access the TPM6501Q schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like TPM65, or try a keyword search, such as Other Interface ICs
